Disassembly and Assembly

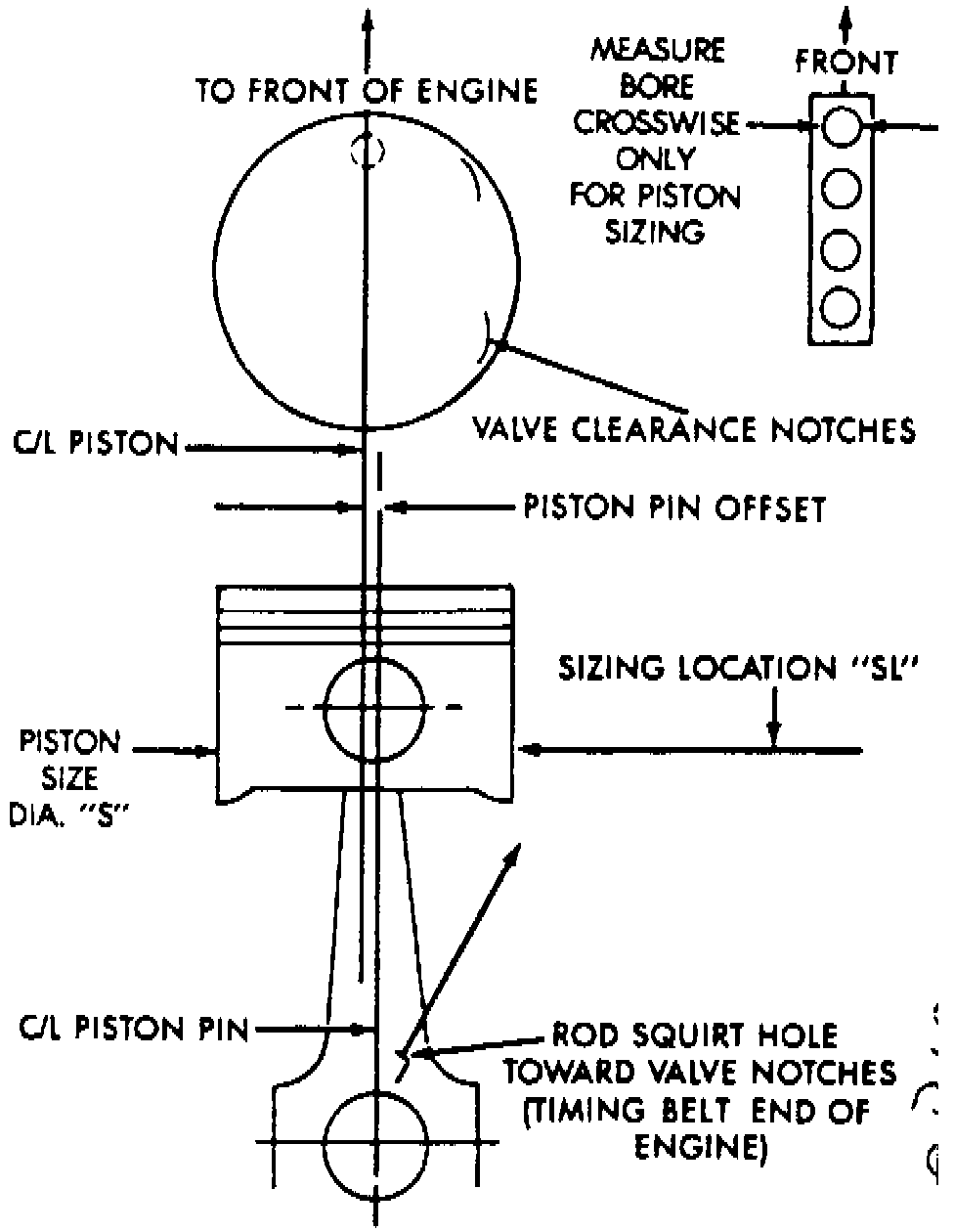

Fig. 24 Piston & Connecting Rod Assembly:

When installing piston and rod assembly, valve cut must face toward manifold side of engine, Fig. 24.

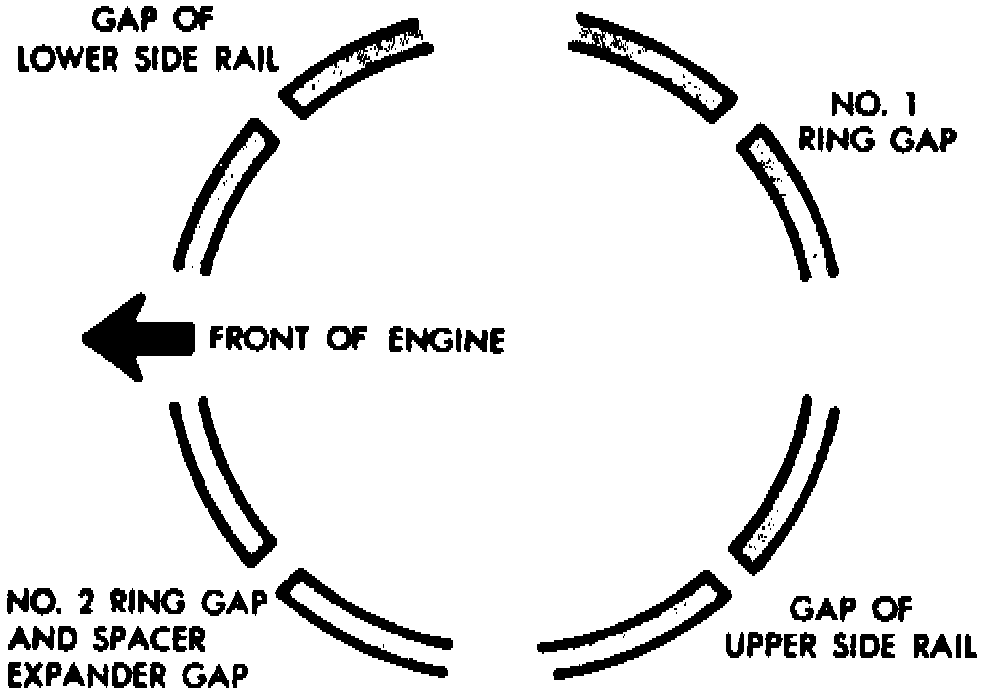

Fig. 25 Ring End Gap Orientation:

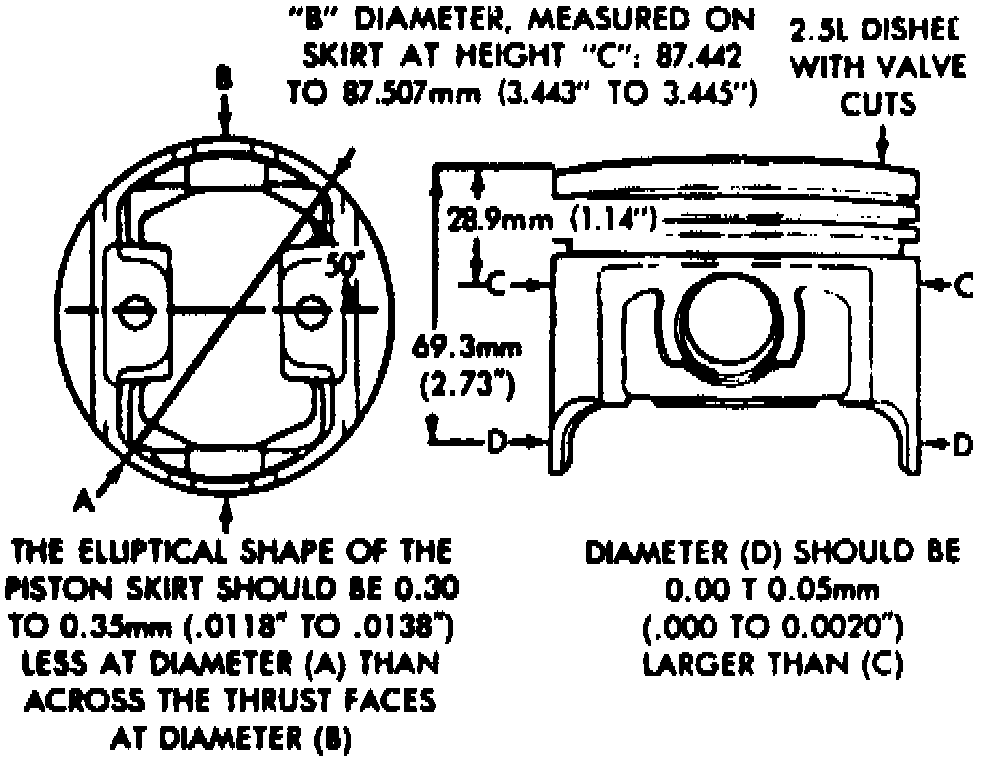

Fig. 26 Piston Measurements:

Refer to Fig. 25 and 26 for piston specifications and ring end gap positions.

Connecting rod side clearance should be .005-.013 inch.
