Sliding Door Center Hinge

Sliding Door Center Hinge:

REMOVAL
1. Remove sliding door center hinge track cover.
2. Remove screw holding over travel stop to center hinge track.
3. Remove sliding door trim panel.
4. Mark hinge location on sliding door for reference points when installing.
5. Support Sliding door on a suitable lifting device.

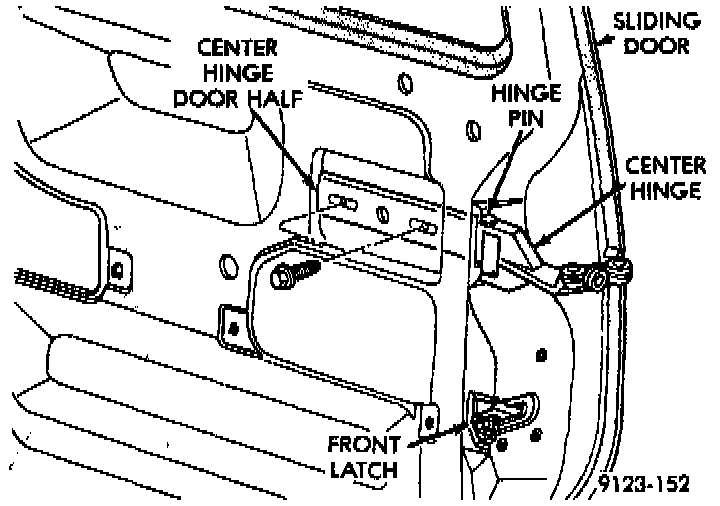

6. Remove bolts holding center hinge to sliding door.
7. Separate hinge from door.
8. Slide hinge rollers from open end of channel at rear of quarter panel.

INSTALLATION
Reverse the preceding operation. Clean center track with suitable solvent and wipe or blow dry with compressed air. Lubricate track and rollers with Mopar(r) Multi-purpose Grease. Align sliding door to 6 mm (0.240 in.) gap to edge of quarter panel and B-pillar, 7 mm (0.280 in.) gap to rocker and flush across gaps.
