Splice Location Symbol Identification

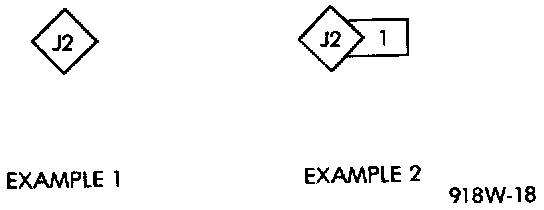

Wiring Splice Examples:

Wire Color Code Chart:

Splice locations are indicated in the diagrams by a diamond with a splice circuit code within it. If there is more than one splice per circuit a small box will be connected to it with the splice number in it.

To locate a splice in the wiring harness determine the splice number from the wiring diagrams, then refer to the splice location index. This section shows the general location of the splice in the harness.

The wiring diagrams also indicate what harness the splice is located in. To identify the harness an abbreviated call out is placed next to the main splice.
