40/41TE/AE

Transmission Identification Tag Location:

Transmission type is identified by a three letter code which may be found in several places as follows;

- On a label attached to the transaxle case, next to the solenoid assembly

Fig. 3 Body Code Plate Breakdown:

- On the body code plate, attached to the top of the radiator closure panel in the engine compartment, (line 1, Digit Boxes 40, 41, AND 42).

CODE TRANSAXLE TYPE

DDM 5 Speed Manual Transaxle

DGM 3 Speed Automatic Transaxle

DGC 3 Speed Automatic Transaxle

DGL 4 Speed Electronic Automatic Transaxle (See image below)

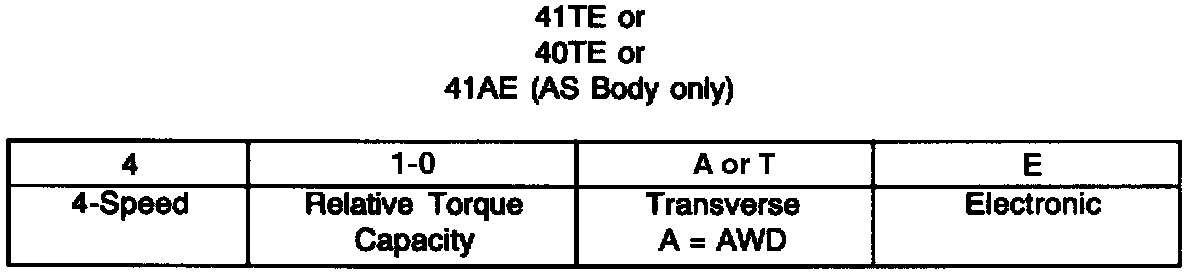

4 Figure Transaxle Designations:
