Electrical Diagrams

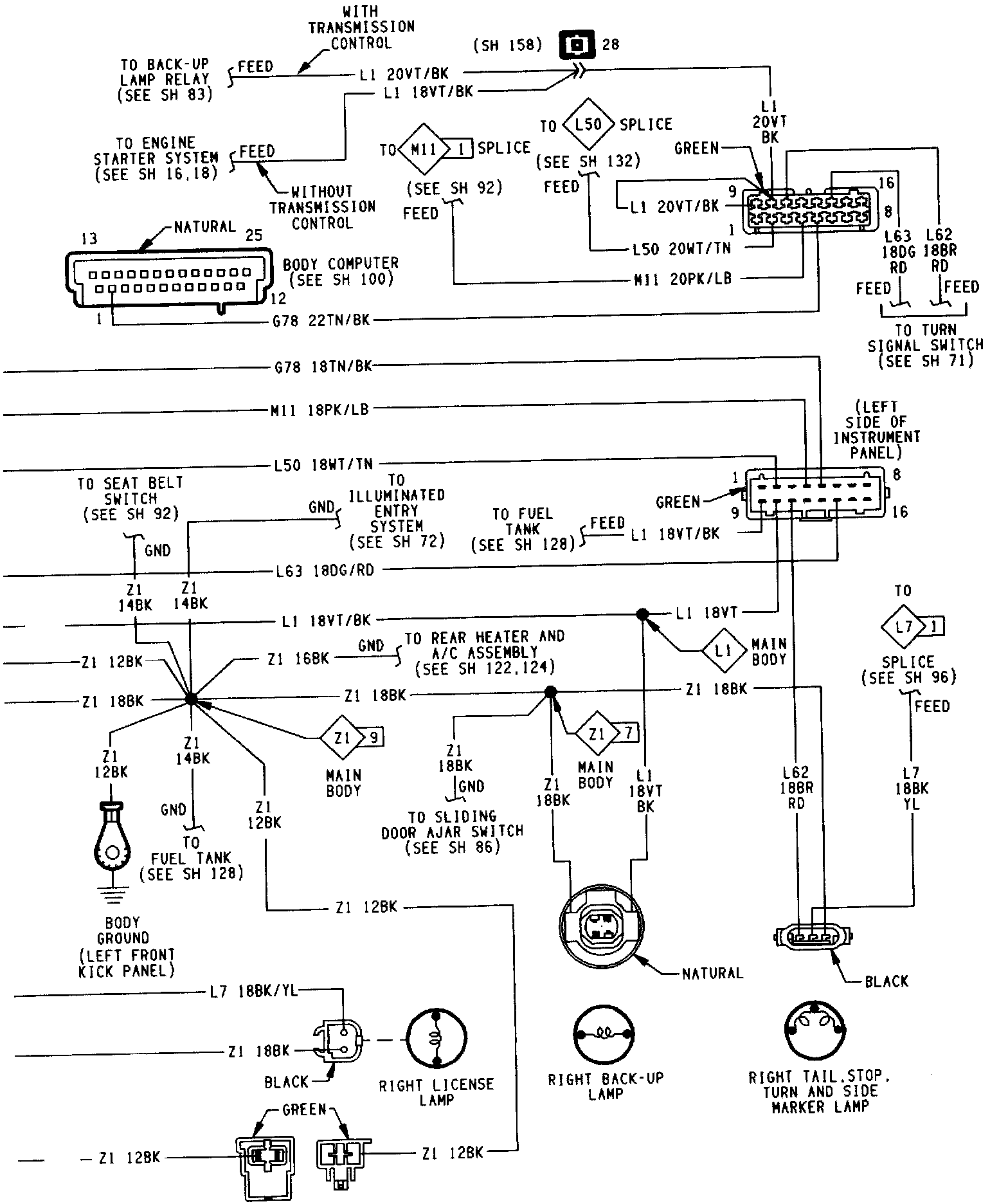

Rear Lighting SH-143:

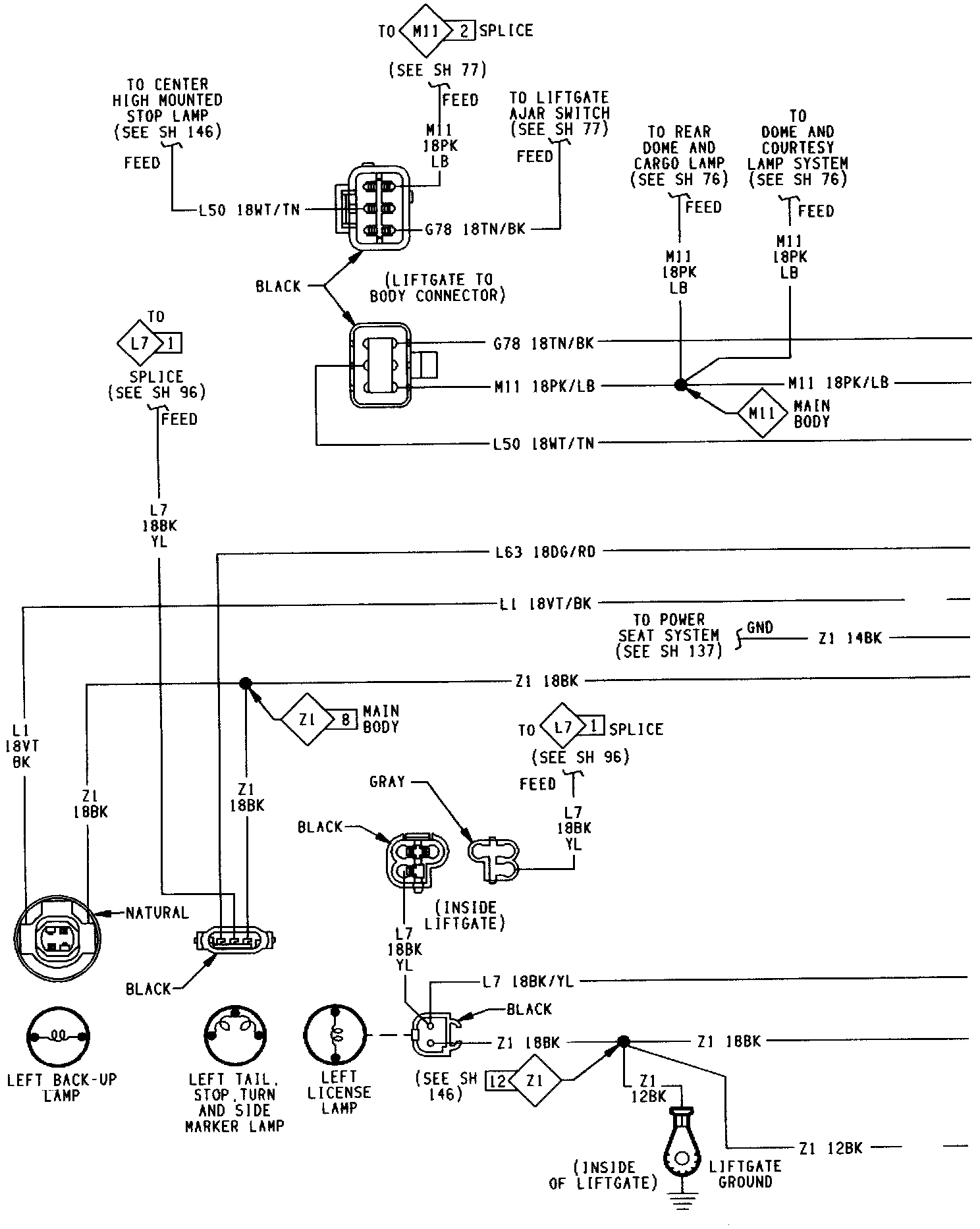

Rear Lighting SH-144:

These 2 images show the actual back up lamps, but do
not include the component(s) that actuate the lamps. Electrical Diagrams

Note: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams at the vehicle level. Electrical Diagrams
