Wheel Cylinder Removal

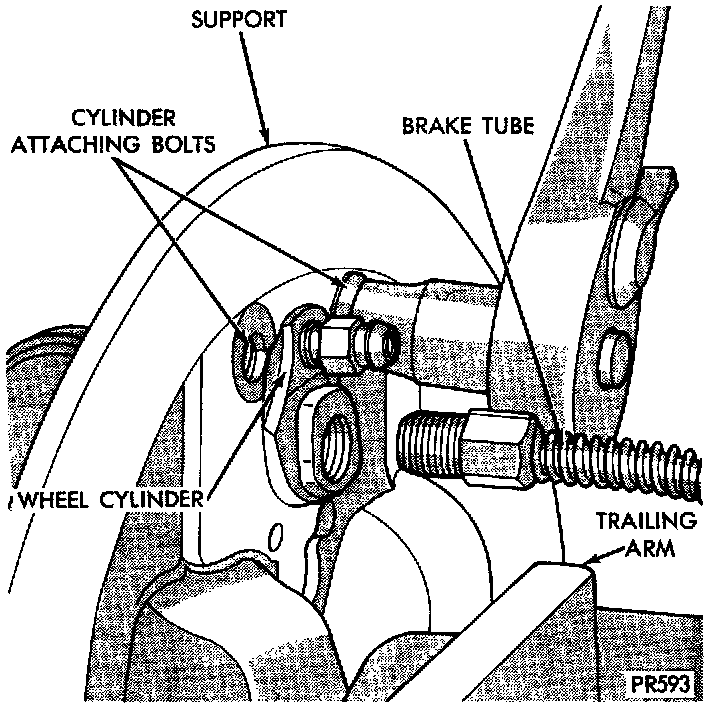

Fig 1 Brake Tube Disconnected:

1. In case of a leak, remove brake shoes, (replace if soaked with grease or brake fluid).
2. Disconnect brake tube from wheel cylinder.

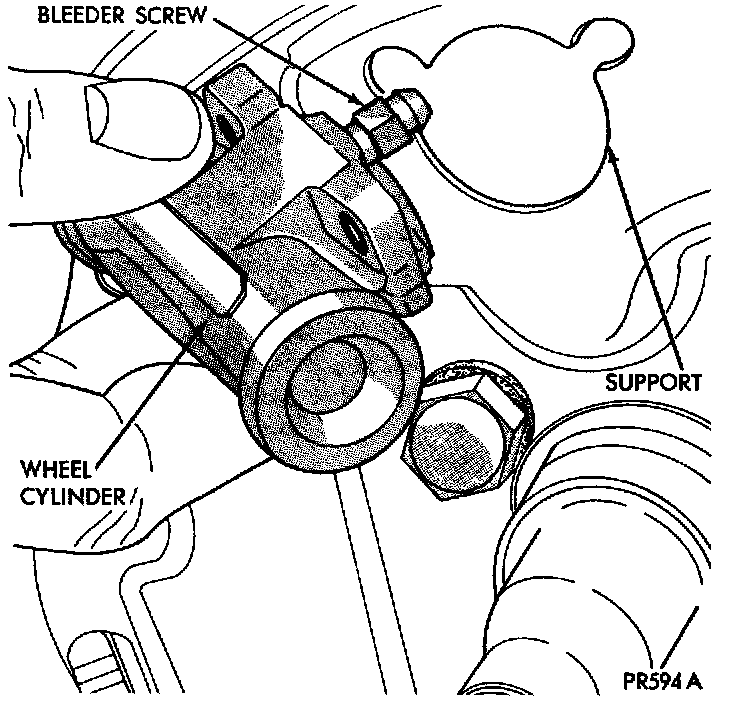

Fig 2 Removing Or Installing Wheel Cylinder:

3. Remove wheel cylinder attaching bolts, then pull wheel cylinder assembly out of support.

For additional information see Notes, Warnings, and Hints.
