Test 40A - 4WD Sense Circuit

Test 40A: Repairing 4WD Sense Circuit:

NOTE:

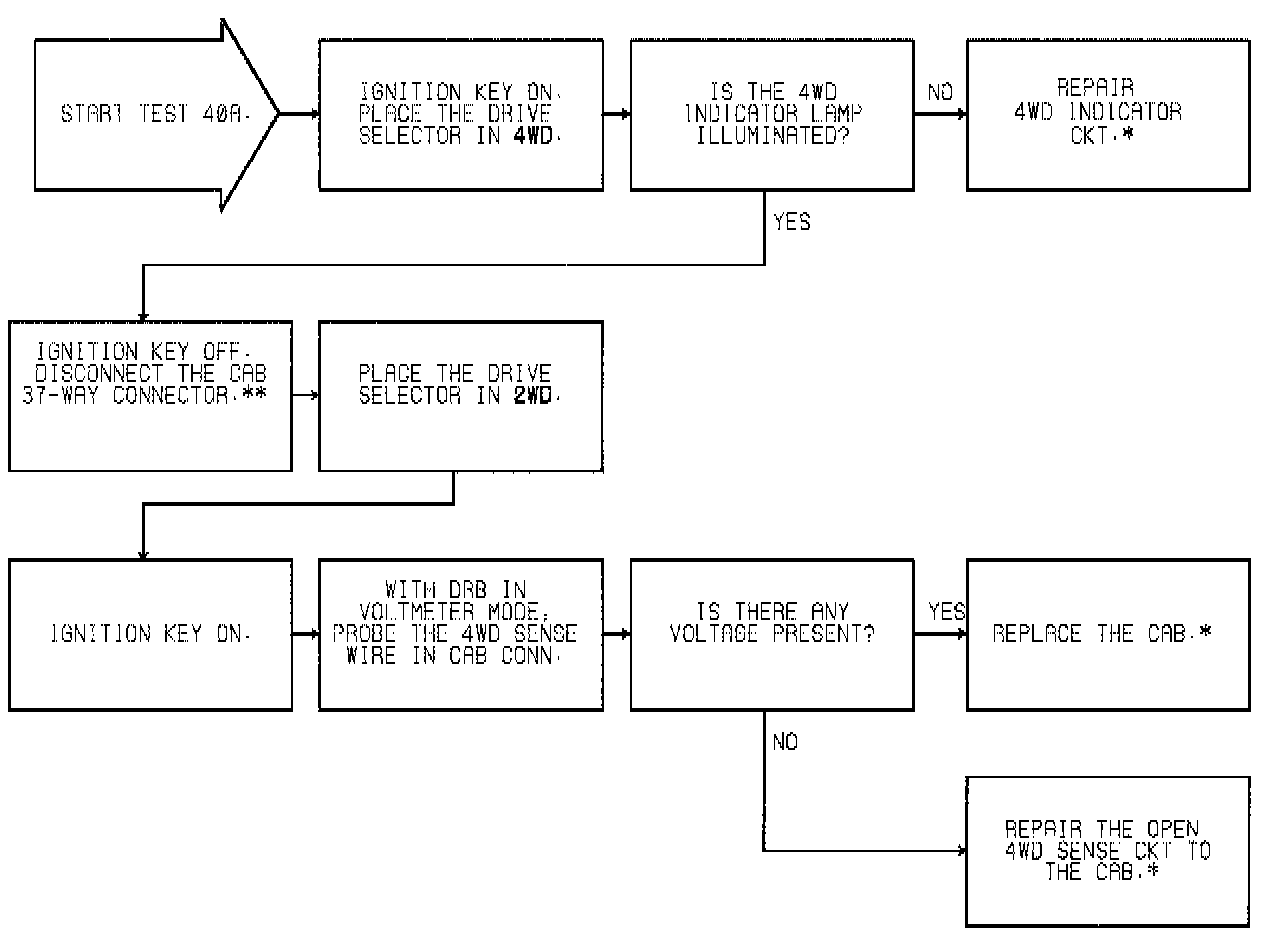

- A single asterisk (*) in the diagnostic chart indicates the Verification Test must be performed. Verification Test VER-1A - ABS
- A double asterisk (**) in the diagnostic chart indicates a connector must be checked, then cleaned or repaired as necessary.

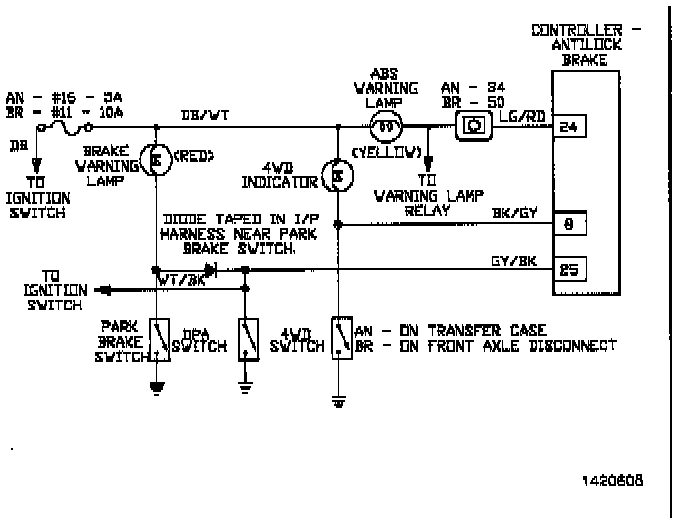

Schematic:

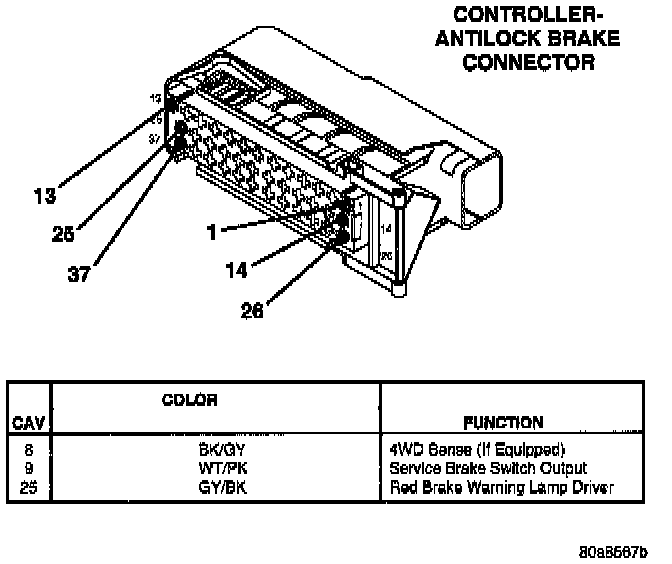

Controller-Antilock Brake Connector:
