RAM 2500 Van V8-360 5.9L Magnum
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Figure 21
Figure 21

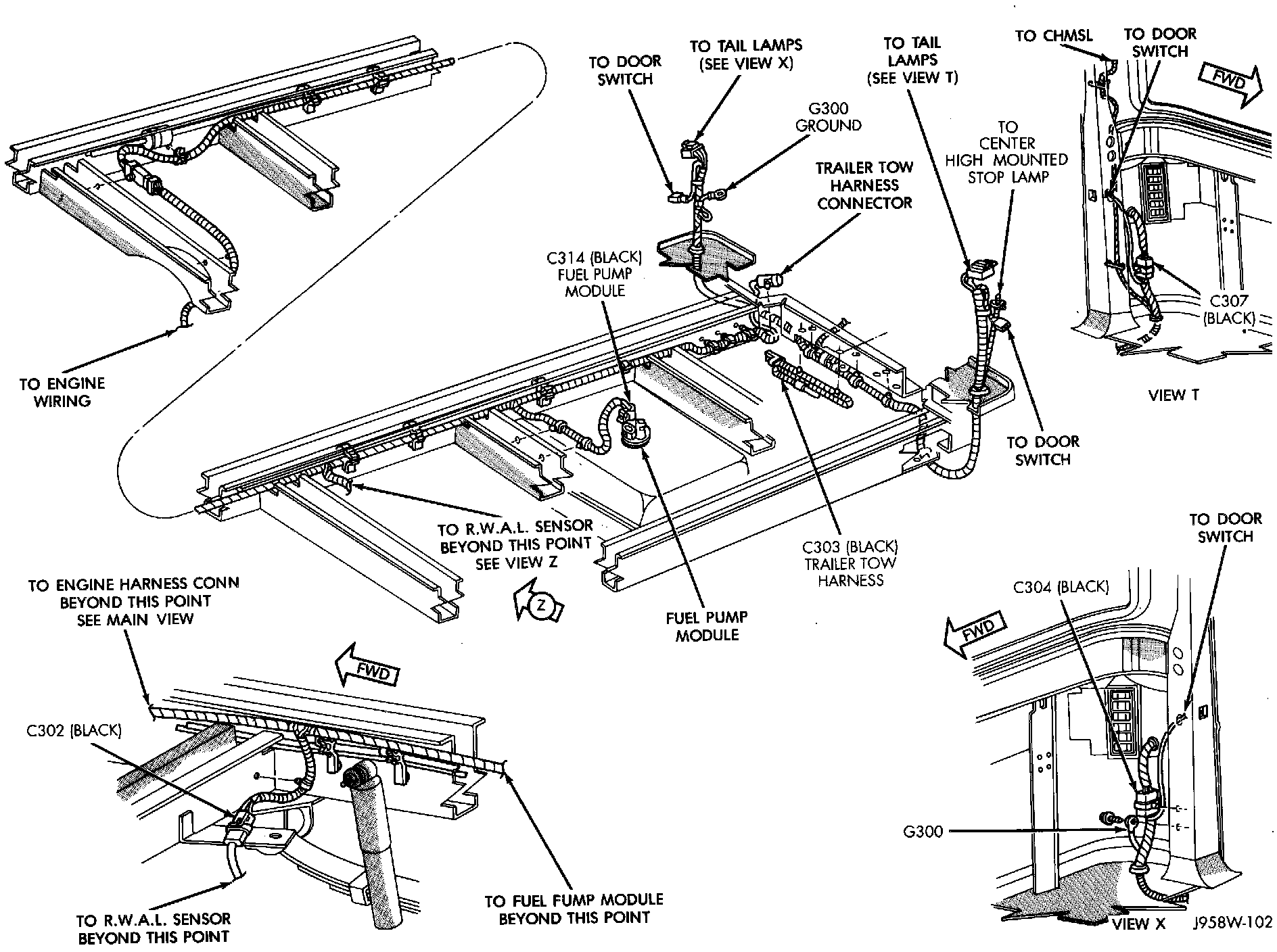

Rear Body And Underbody Wiring Connectors:
