Removal

Axle Seal Removal:

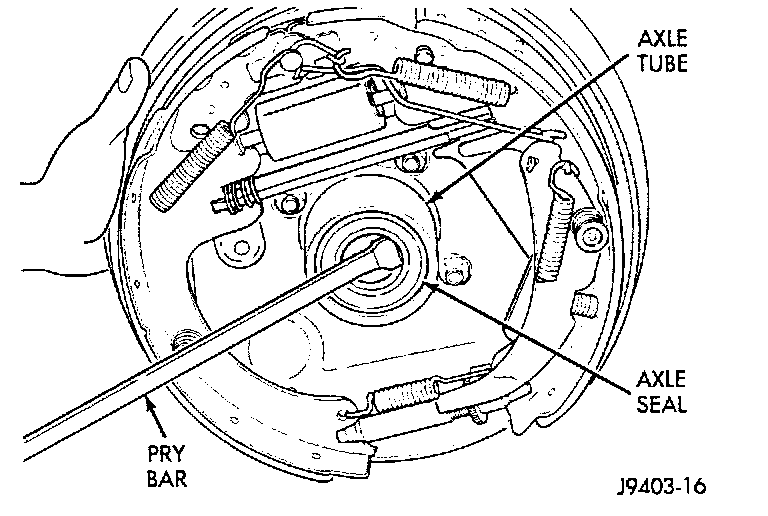

1. Remove the axle shaft seal with a small pry bar.

Bearing Removal:

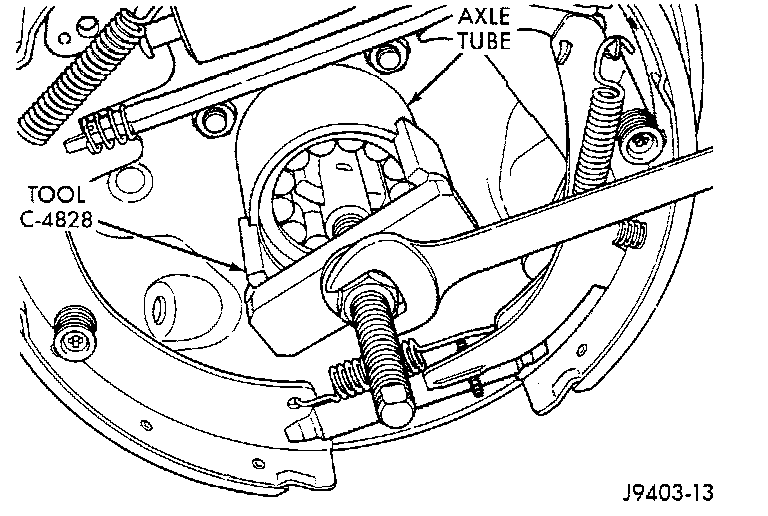

2. Remove the axle bearing with Remover C-4828.

3. Inspect the axle shaft seal surface and tube bore for roughness and burrs. Polish each axle shaft with No. 600 crocus cloth. This will remove slight surface damage. Do not reduce the diameter of the axle shaft seal contact surface. When polishing, the crocus cloth should be moved around the circumference of the shaft (not in-line with the shaft).
