Driver/Vehicle Information Display
Driver/Vehicle Information Display

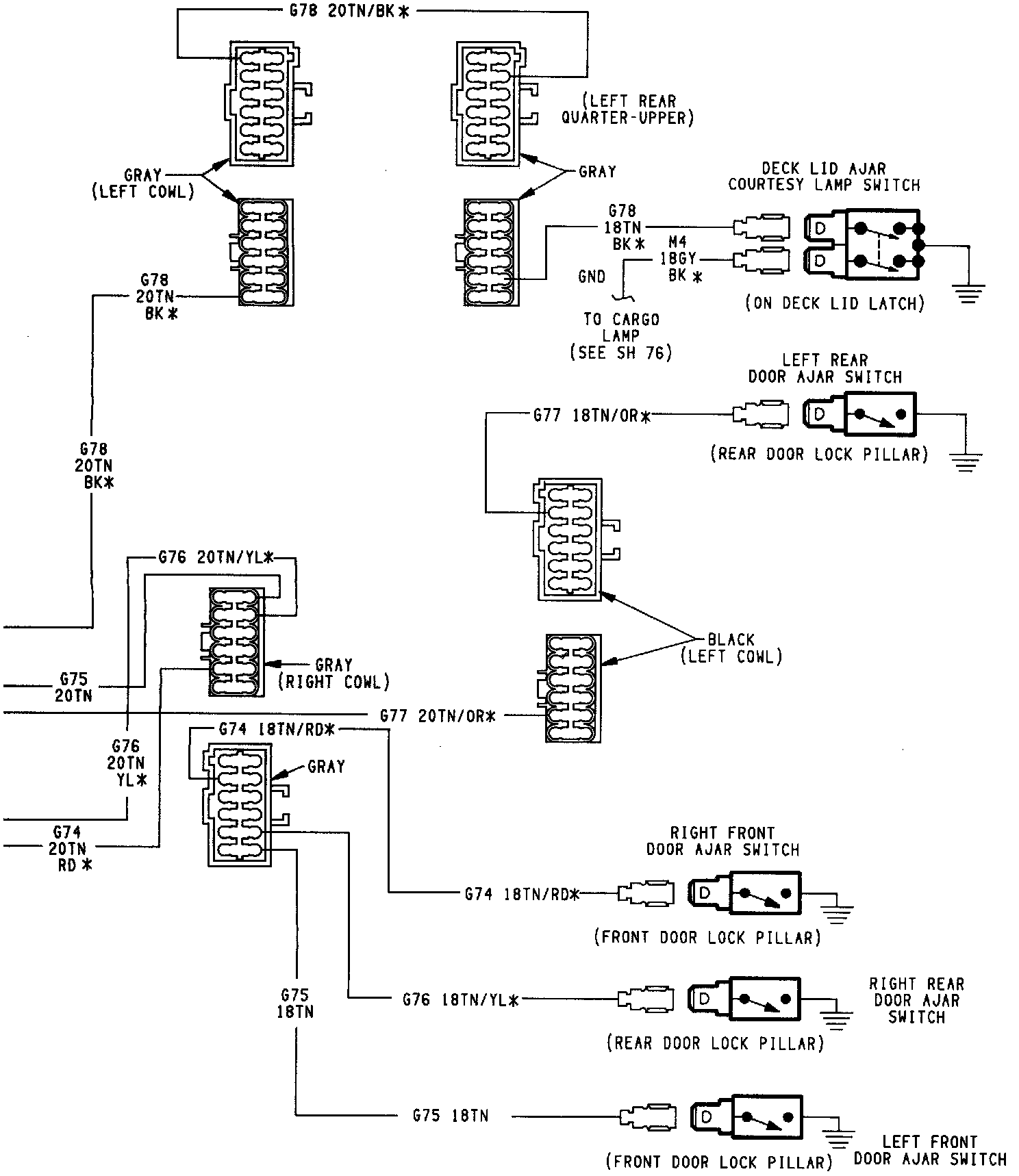

Visual Message Center & Door Ajar Switches:
Visual Message Center & Door Ajar Switches:
