Operation CHARM: Car repair manuals for everyone.
Home >> Dodge and Ram >> 1996 >> 2500 4x4 Pickup V8-5.2L CNG VIN T >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-70 Splice Information >> Sheet 8W-70-14

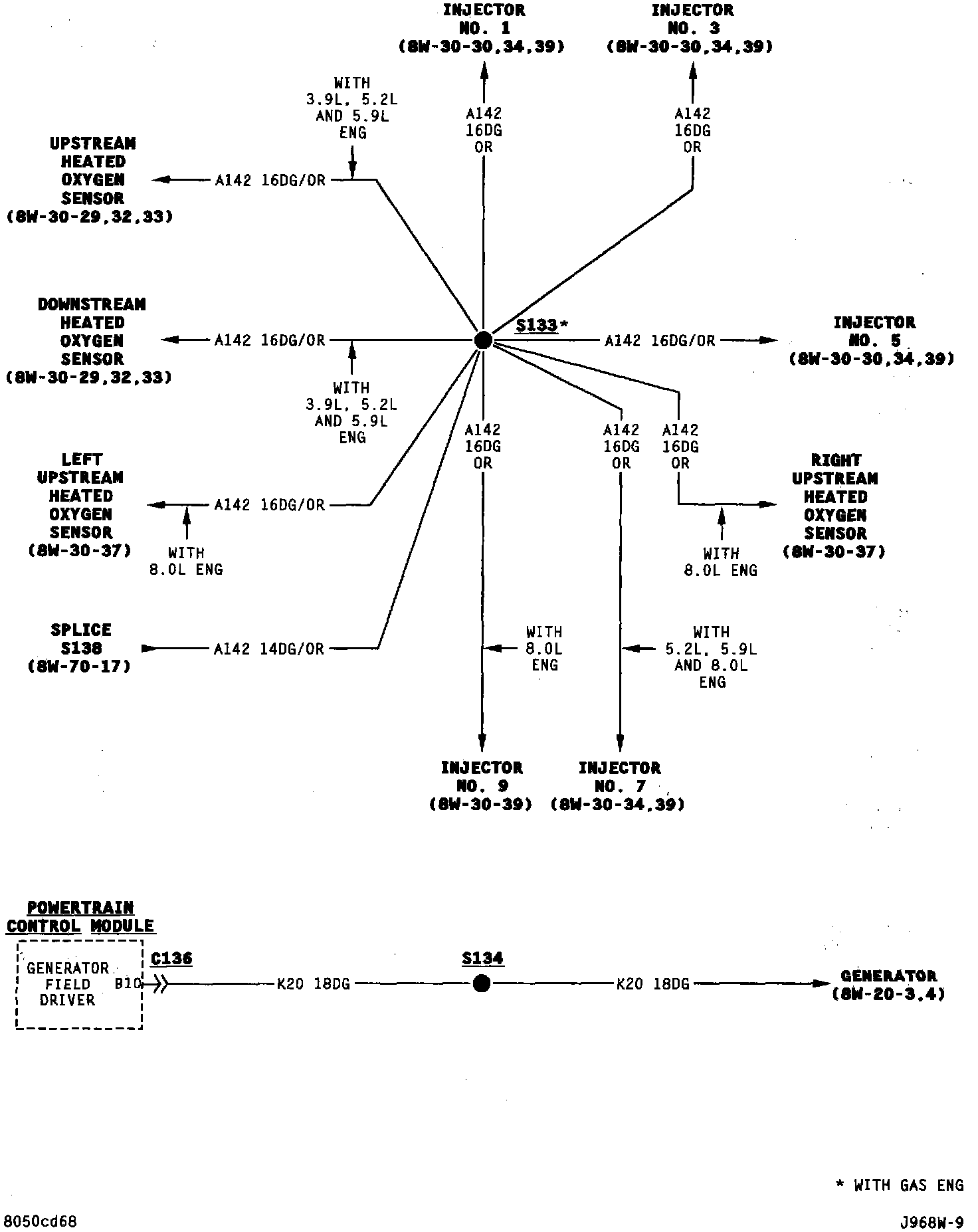

Sheet 8W-70-14

Splice Information (Part 12 Of 41):
