Inspect Radiator Build Date Code

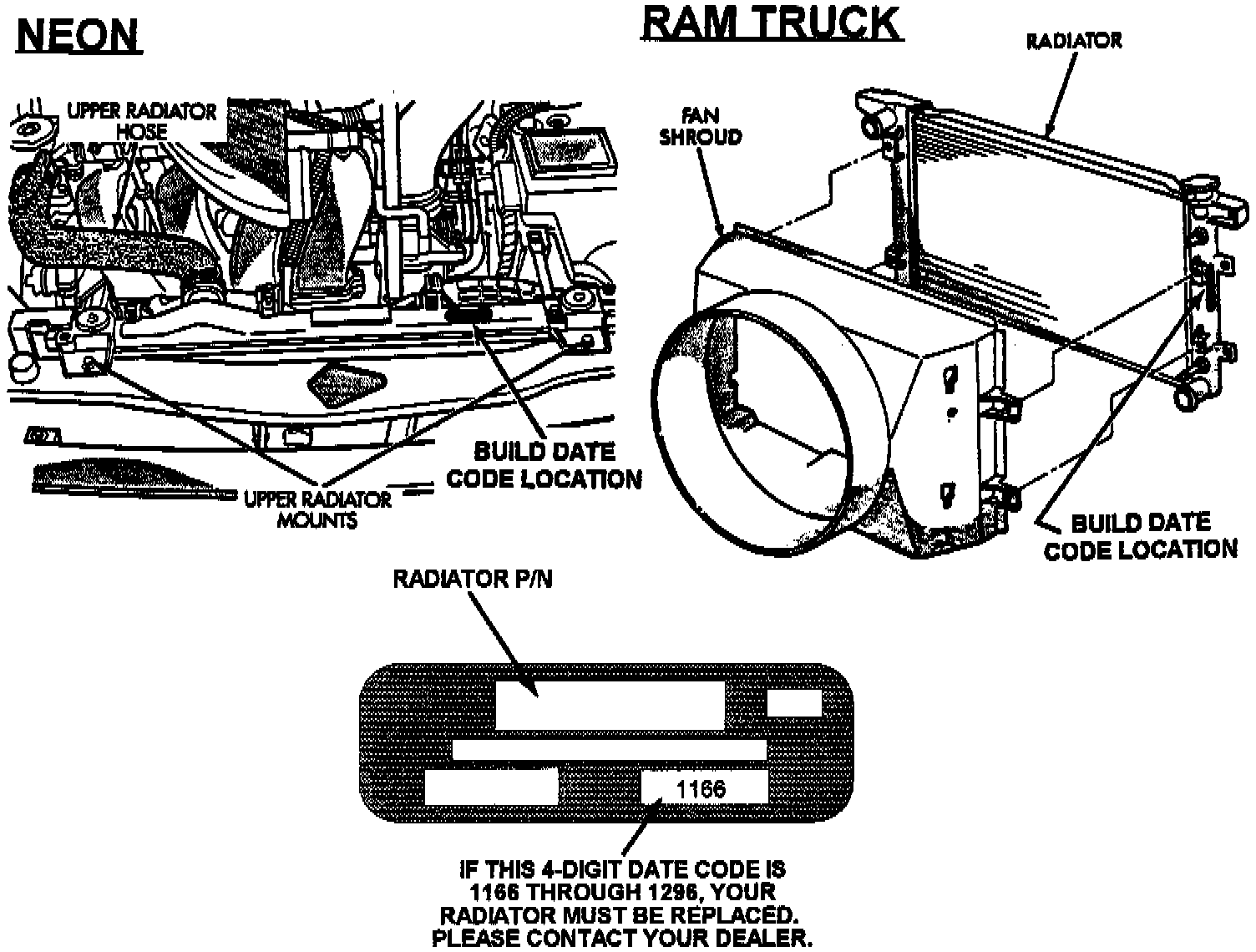

1. Locate the radiator build date code as shown in the figure.

2. ^ If the build date code is 1166 through 1296, the radiator must be replaced. Contact your dealer to schedule a service appointment.

^ If the build date code is not in the above range, no further repair action is necessary. Please mark "INSPECTED BY OWNER" on the preaddressed Vehicle Disposition Form portion of the enclosed Owner Recall Notification Form and put it in the mail. No postage is required.
