QUARTER TRIM BOLSTER


The speaker grille in the quarter trim bolster is not removable. The trim bolster must removed to service the speaker.

REMOVAL

1. Disengage hidden clips holding trim bolster to quarter trim panel.

2. Disengage hook retainer holding front of trim bolster to quarter trim panel, if applicable.

3. Separate quarter trim bolster from vehicle.

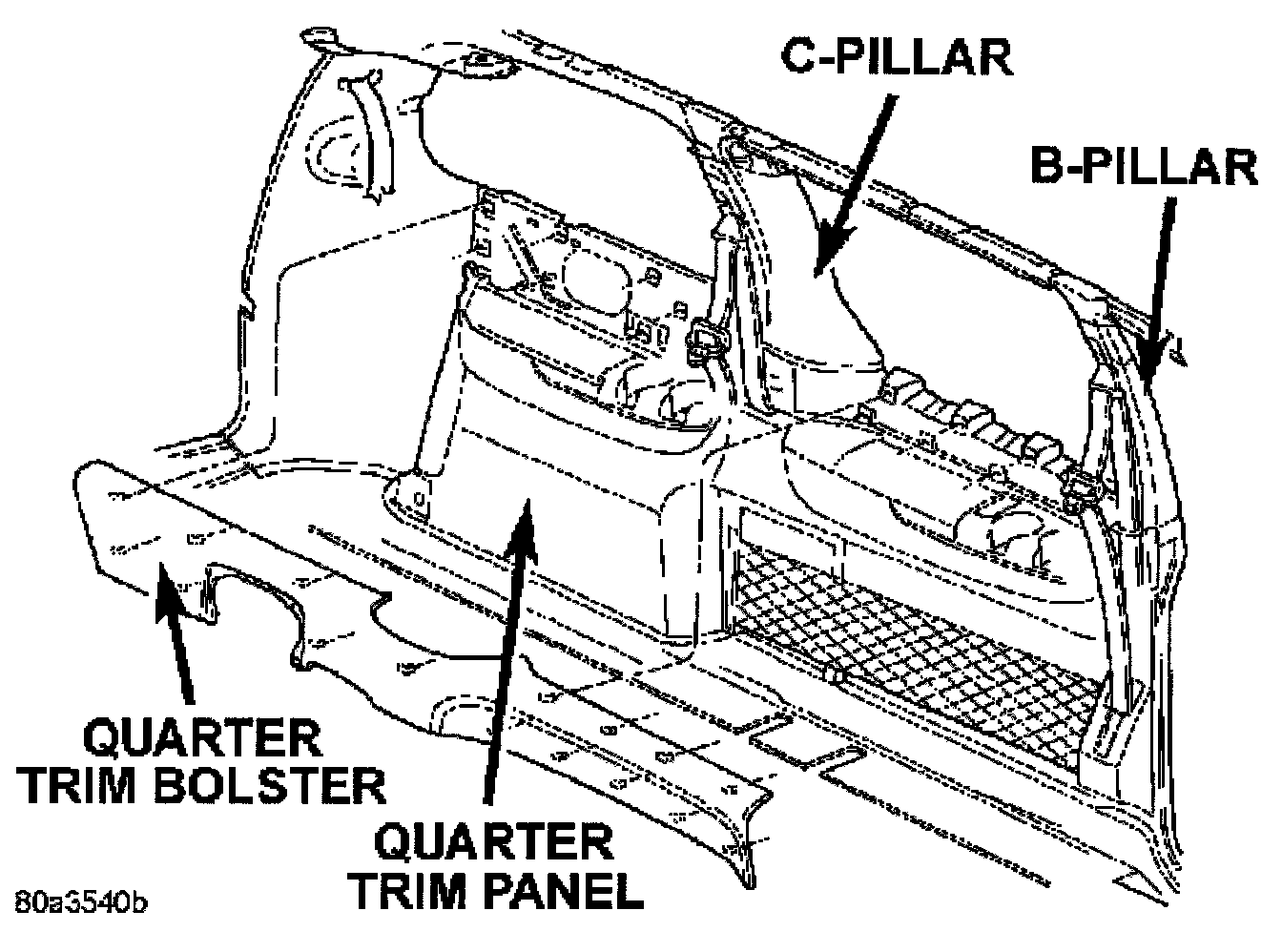

Left Quarter Trim Bolster - LWB 4 Door

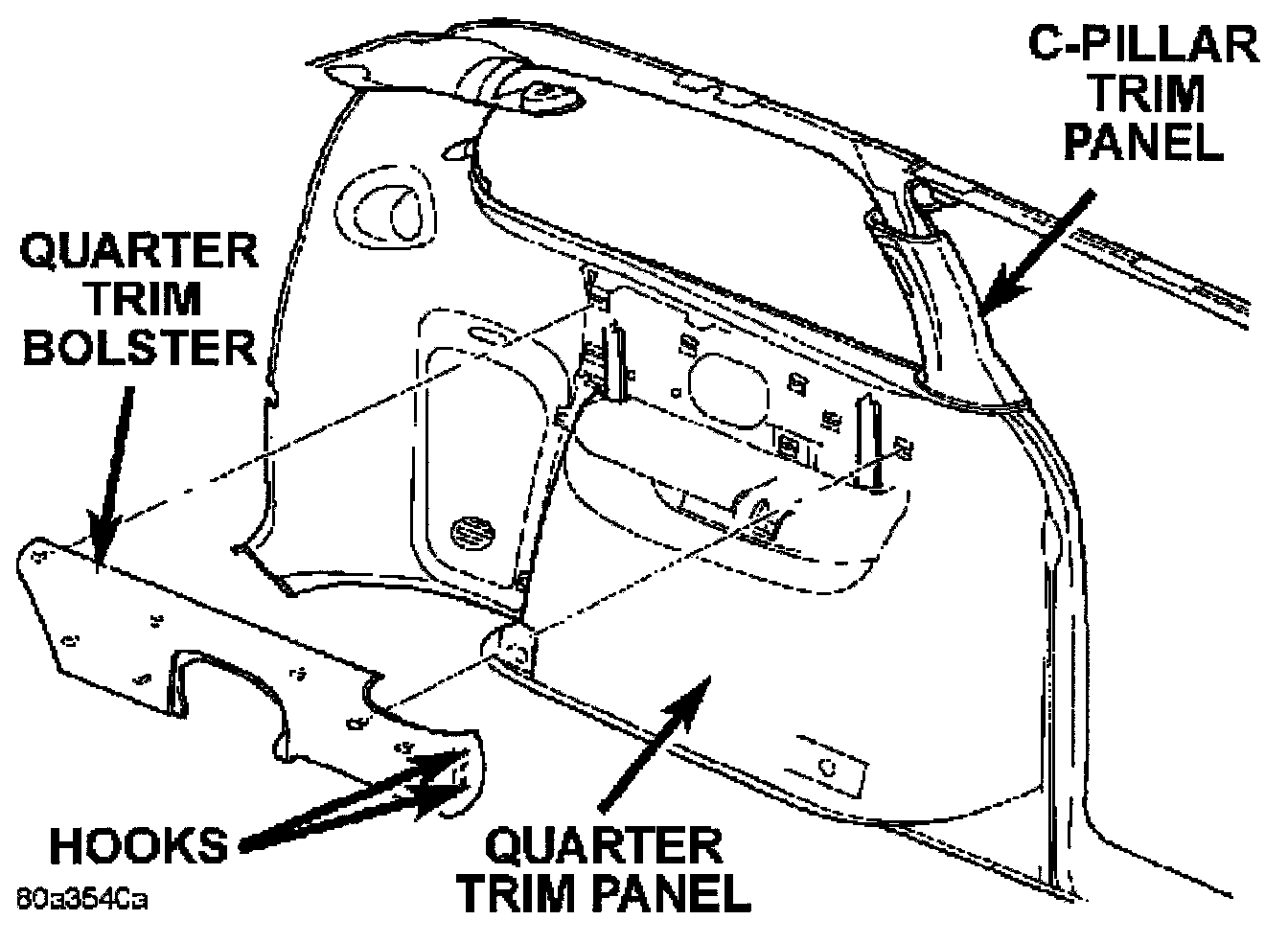

Left Quarter Trim Bolster SWB and LWB 3 Door

INSTALLATION

1. Place quarter trim bolster in position on vehicle.

2. Engage hook retainer to hold front of trim bolster to quarter trim panel, if applicable.

3. Engage hidden clips to hold trim bolster to quarter trim panel.
