Electronic Transmission Range Indicator

REMOVAL

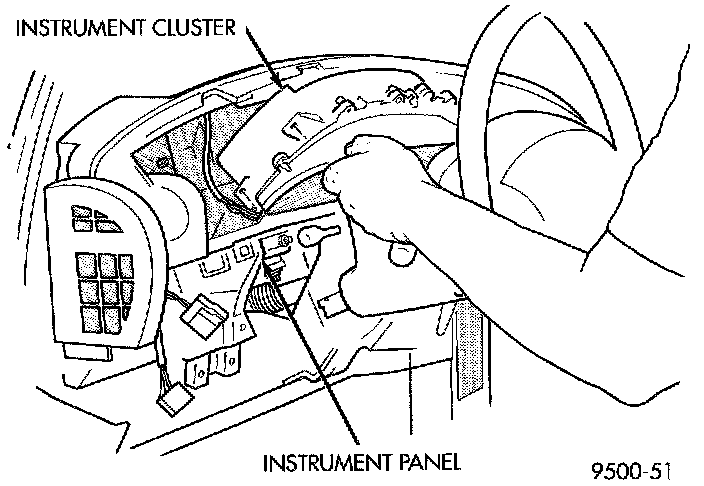

Instrument Panel - Electronic Transmission Range Indicator:

1. Remove instrument cluster bezel.
2. Remove screws holding instrument cluster to instrument panel.
3. Rotate top of cluster outward.
4. Remove instrument cluster from instrument panel.
5. Disconnect wire connector from back of instrument cluster.
6. Remove instrument cluster.

INSTALLATION
1. Place instrument cluster in instrument panel, bottom first.
2. Connect wire connector into back of instrument cluster.
3. Position instrument cluster in instrument panel.
4. Install instrument cluster mounting screws to instrument panel.
5. Install instrument cluster bezel.
