Instrument Cluster Bezel Replacement

REMOVAL
1. Remove steering column cover.

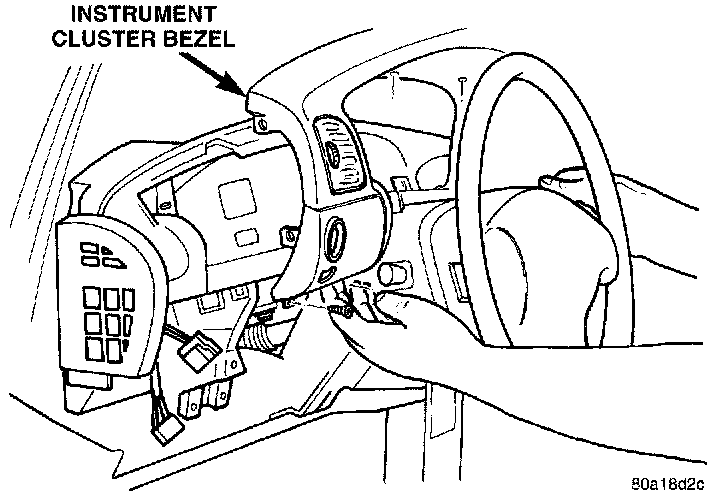

Instrument Cluster Bezel:

2. Remove over steering column bezel.
3. Remove left end cover.
4. Remove screw at left end of cluster bezel and headlamp switch.
5. Remove screws holding cluster bezel to instrument panel from each side of steering column.
6. Disconnect clip holding cluster bezel to instrument panel from above right vent louver.
7. Separate cluster bezel from instrument panel.
8. Disconnect wire connectors from back of the bezel.

INSTALLATION
1. Connect wire connectors into back of the bezel.
2. Place cluster bezel in position on instrument panel. Use care not to place hands on louvers.
3. Connect clips to hold cluster bezel to instrument panel. Use care not to add pressure on the A/C louvers to seat the cluster bezel clips.
4. Install screws to hold cluster bezel to instrument panel on each side of steering column.
5. Install screw at left end of cluster bezel and headlamp switch.
6. Install left end cover.
7. Install over steering column bezel.
8. Install lower steering column cover.
