Manifold Absolute Pressure (MAP) Sensor

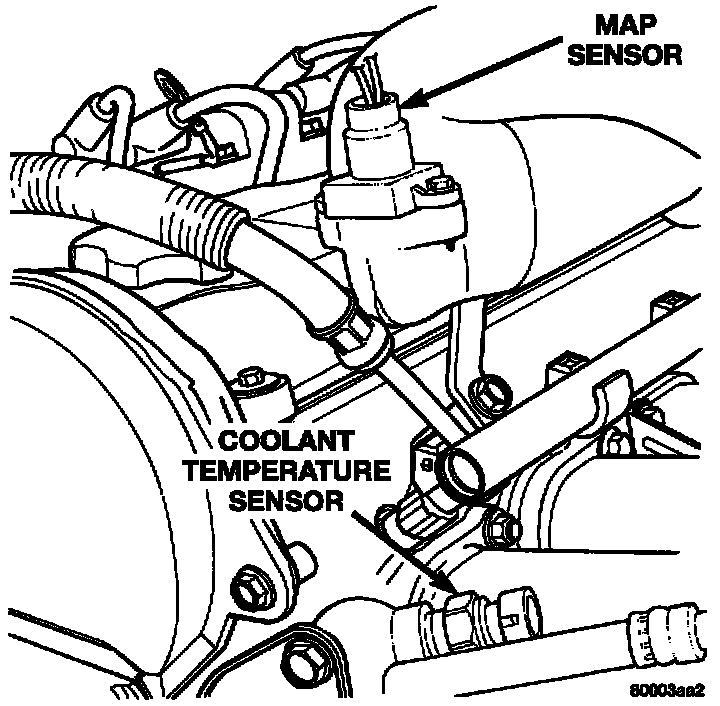

Fig 24 MAP Sensor:

The PCM supplies 5 volts to the MAP sensor. The MAP sensor converts intake manifold pressure into voltage. The PCM monitors the MAP sensor output voltage. As vacuum increases, MAP sensor voltage decreases proportionately. Also, as vacuum decreases, MAP sensor voltage increases proportionately

During cranking, before the engine starts running, the PCM determines atmospheric air pressure from the MAP sensor voltage. While the engine operates, the PCM determines intake manifold pressure from the MAP sensor voltage.

Based on MAP sensor voltage and inputs from other sensors, the PCM adjusts spark advance and the air/fuel mixture.

The MAP sensor (Fig. 24) mounts to the intake manifold near the throttle body inlet to the manifold. The sensor connects electrically to the PCM.
