Component Tests and General Diagnostics

A DRB scan tool is required for diagnosis of the airbag system. Refer to Testing and Inspection/Procedures/Diagnostic Charts for more information.
1. Disconnect and isolate the battery negative cable. If the airbag system is undeployed, wait two minutes for the system capacitor to discharge before further service.

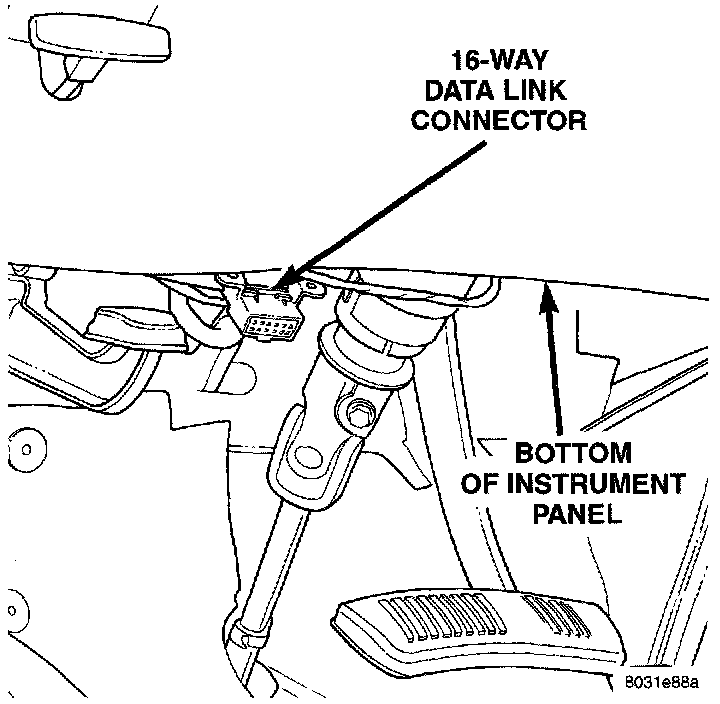

Data Link Connector Location:

2. Connect the DRB scan tool to the 16-way data link connector. The connector is located under the lower left edge of the instrument panel, outboard of the steering column.
3. From the right side of the vehicle (away from the airbag module in case of an accidental deployment), turn the ignition switch to the On position. Exit the vehicle with the DRB. Use the latest version of the proper DRB cartridge.
4. After checking that nobody is inside the vehicle, reconnect the battery negative cable.
5. Using the DRB, read and record the active Diagnostic Trouble Code (DTC) data.
6. Read and record any stored DTC data.
7. Refer to Testing and Inspection/Procedures/Diagnostic Charts, if any DTC is found in Step 5 or Step 6.
8. Erase the stored DTC data. If any problems remain, the stored DTC data will not erase.
9. With the ignition switch still in the On position, make sure nobody is in the vehicle.
10. From the right side of the vehicle (away from the airbag module in case of an accidental deployment) turn the ignition switch to the Off position for about ten seconds, and then back to the On position. Observe the airbag indicator lamp in the instrument cluster. It should light for six to eight seconds, and then go out. This indicates that the airbag system is functioning normally.

NOTE: If the airbag warning lamp fails to light, or lights and stays on, there is a system malfunction. Refer to Testing and Inspection/Procedures/Diagnostic Charts to diagnose the problem.
