Symptom Related Diagnostic Procedures

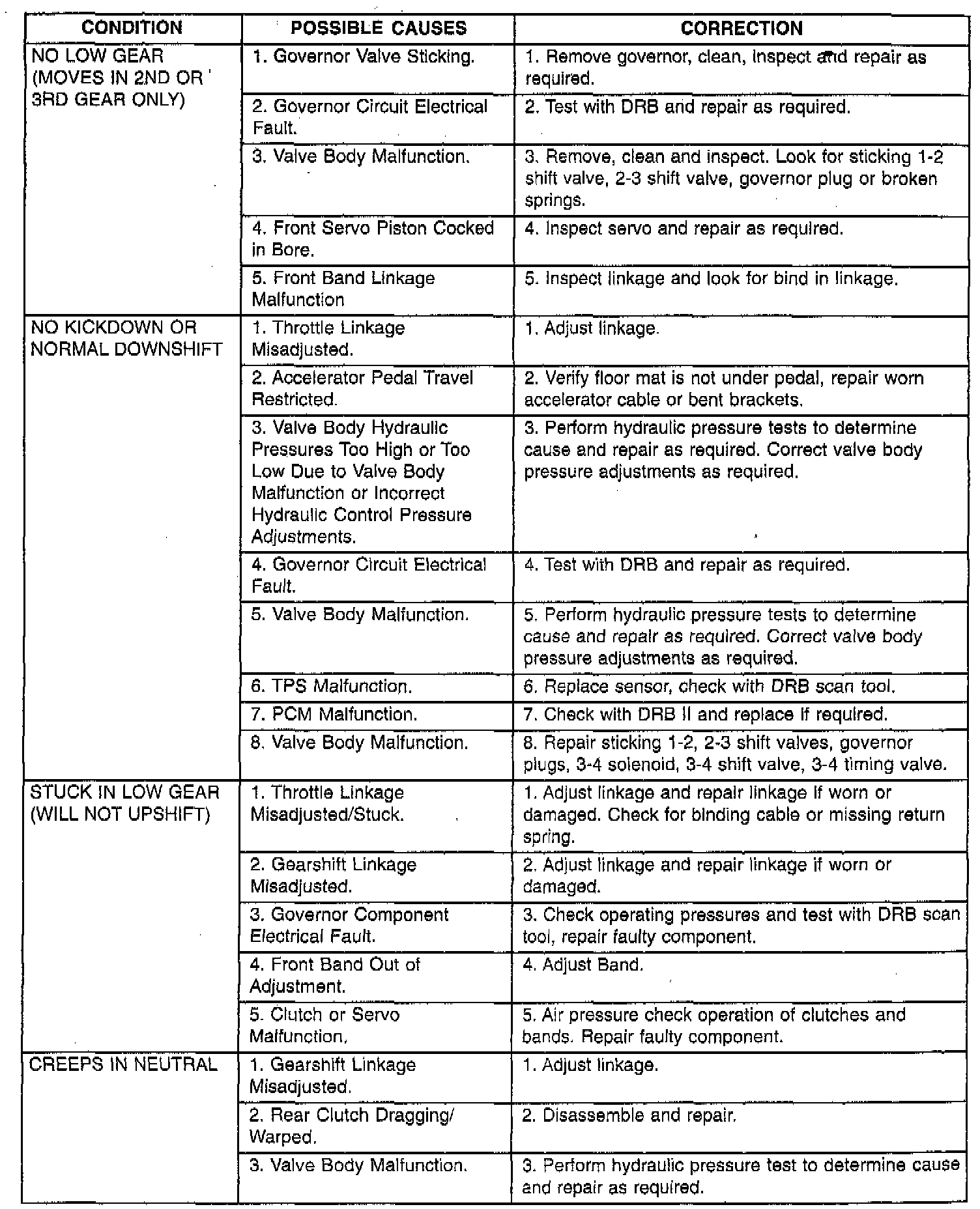

The diagnosis charts provide additional reference when diagnosing a transmission fault. The charts provide general information on a variety of transmission. overdrive unit and converter clutch fault conditions.

The hydraulic flow charts in Diagrams/Fluid, outline fluid flow and hydraulic circuitry. Circuit operation is provided for neutral, third, fourth and reverse gear ranges. Normal working pressures are also supplied for each of the gear ranges.
