Heater-A/C Control Bezel Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.

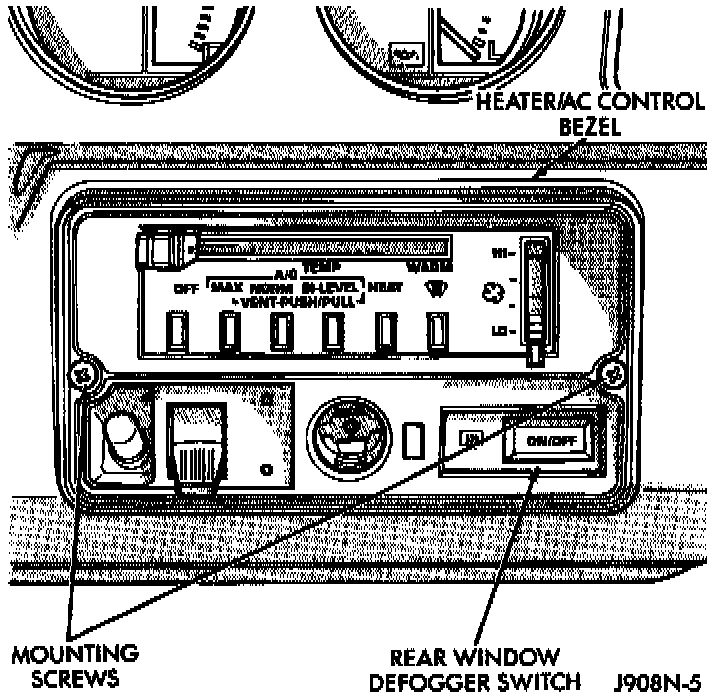

Heater - A/C Control Bezel Remove/Install:




2. Remove the two screws that secure the heater- A/C control bezel to the instrument panel.
3. Pull the bezel out from the instrument panel far enough to unplug the wire harness connectors from the bezel-mounted switches and the cigar lighter.
4. Remove the heater-A/C control bezel unit from the instrument panel.
5. Reverse the removal procedures to install.
