Distributor: Description and Operation

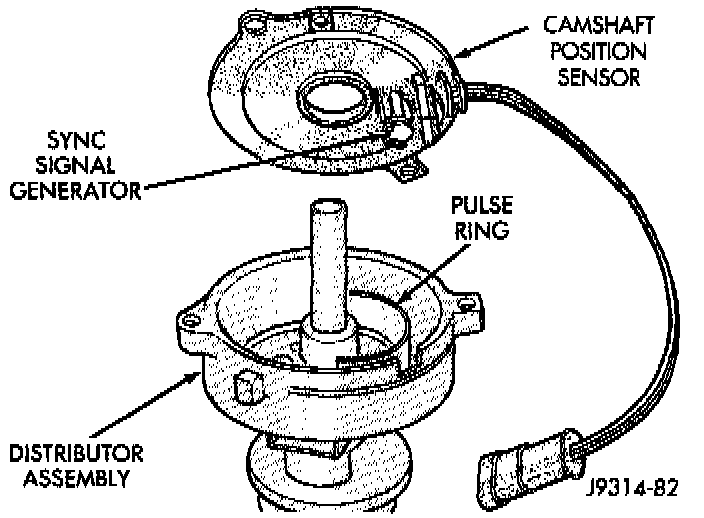

Fig. 2 Distributor And Camshaft Position Sensor - Typical:

DESCRIPTION
All engines are equipped with a conventional camshaft driven mechanical distributor containing a shaft driven distributor rotor. The distributor is equipped with the camshaft position (fuel sync) sensor. This sensor provides fuel injection synchronization and cylinder identification.

OPERATION
The distributor does not have built in centrifugal or vacuum assisted advance. Base ignition timing and all timing advance is controlled by the Jeep/Truck Engine Controller (JTEC). Because ignition timing is controlled by the JTEC, base ignition timing is not adjustable.

The distributor is held to the engine in the conventional method using a holddown clamp and bolt.

Although the distributor can be rotated, it will have no effect on ignition timing. All distributors contain an internal oil seal that prevents oil from entering the distributor housing. The seal is not serviceable.
