Heater Hose: Locations

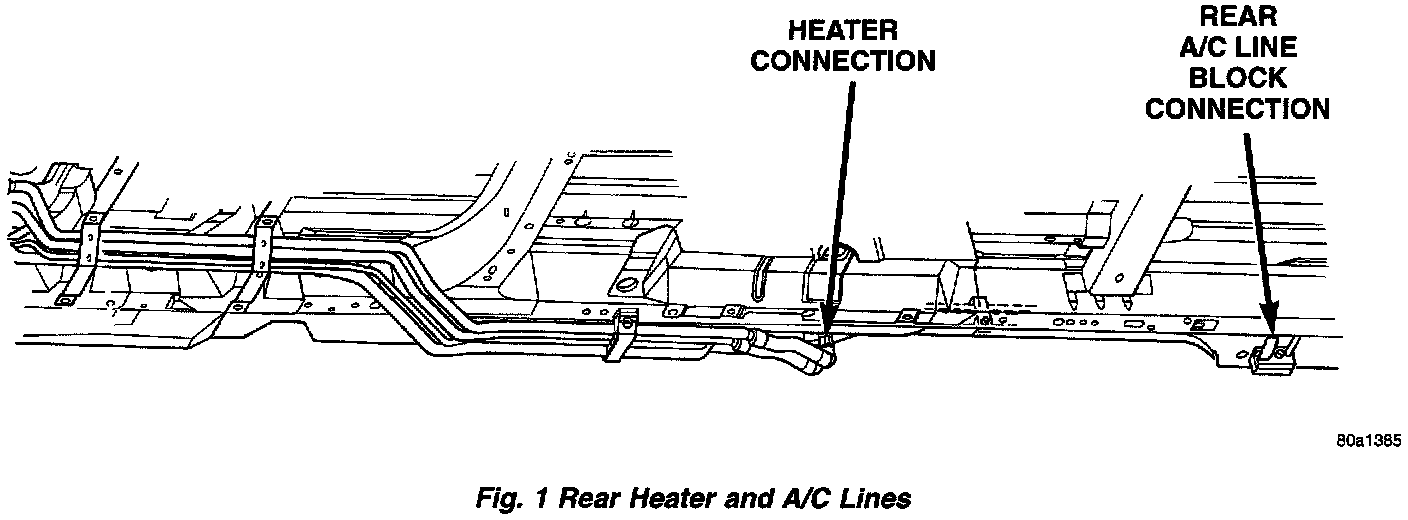

Rear Heater And A/C Lines:

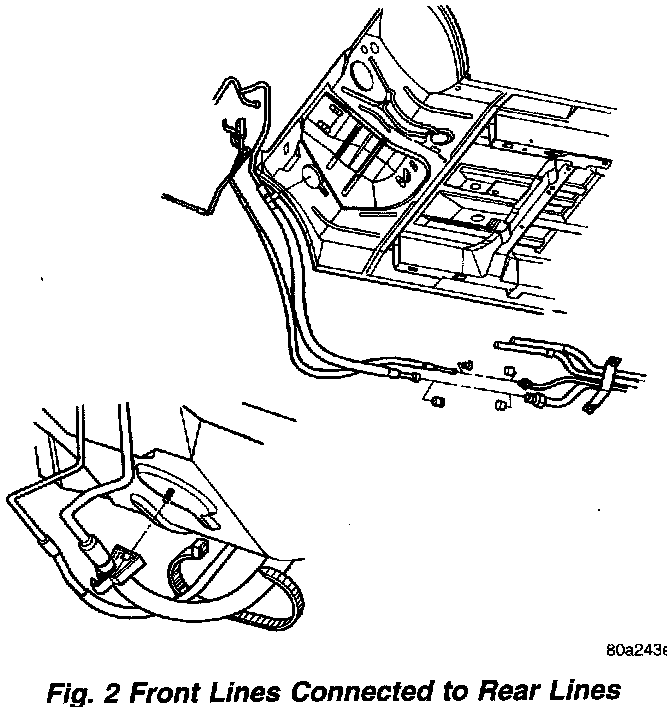

Front Lines Connected To Rear Lines:

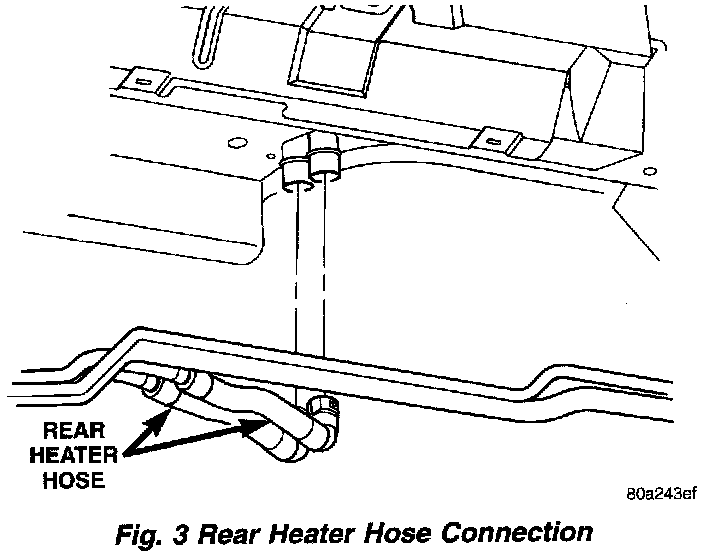

Rear Heater Hose Connection:

Rear Heater Hose Quick Connects:

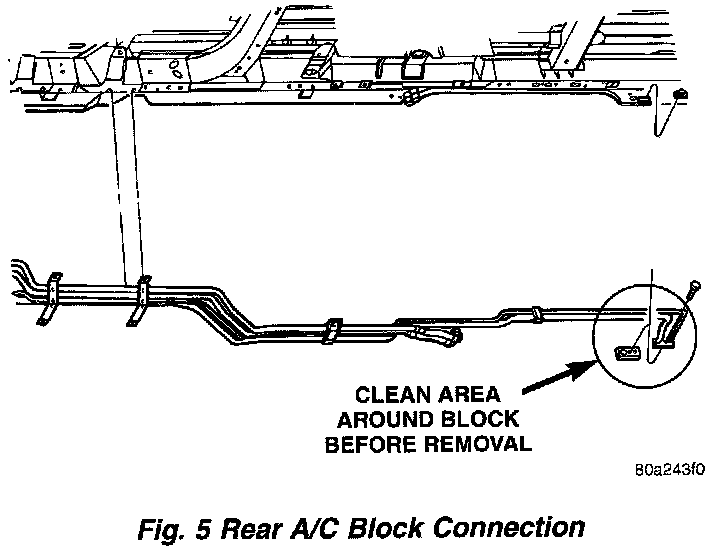

Rear A/C Block Connection:

The rear heater and A/C lines are all serviced as individual pieces. When disconnecting any line or block ensure that the area around it is clean of any contaminations that can get in to the system.
