Manual Valve

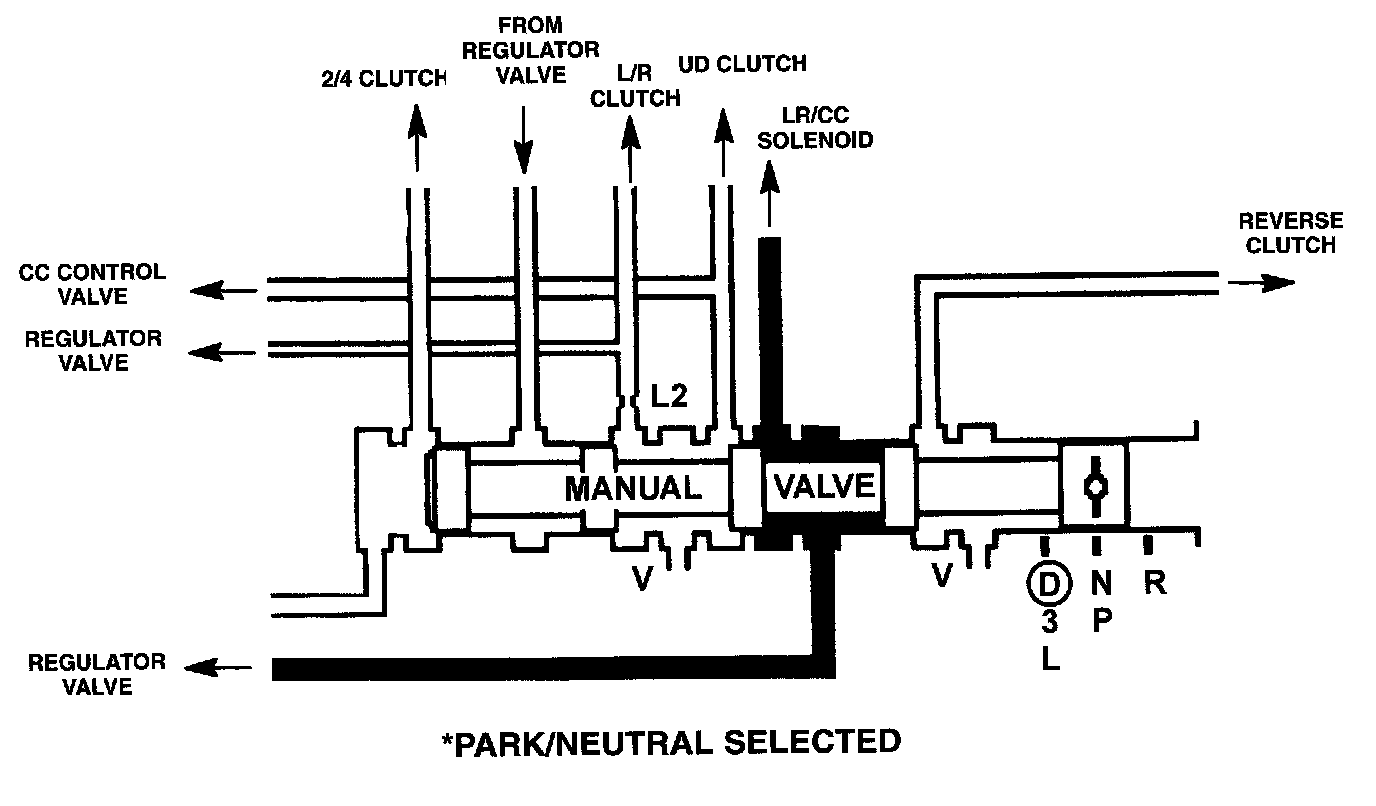

The manual valve operates by mechanical shift linkage only. Its job is to send line pressure to the appropriate hydraulic circuits and solenoids. The valve has three operating ranges or positions. The valve shifts to the left position when OD, Drive or Low is selected. The valve shifts to the middle position in both Park and Neutral. The valve moves to the right position when Reverse is selected.
