Rear Housing Yoke Bushing

REMOVAL
1. Remove housing yoke seal.

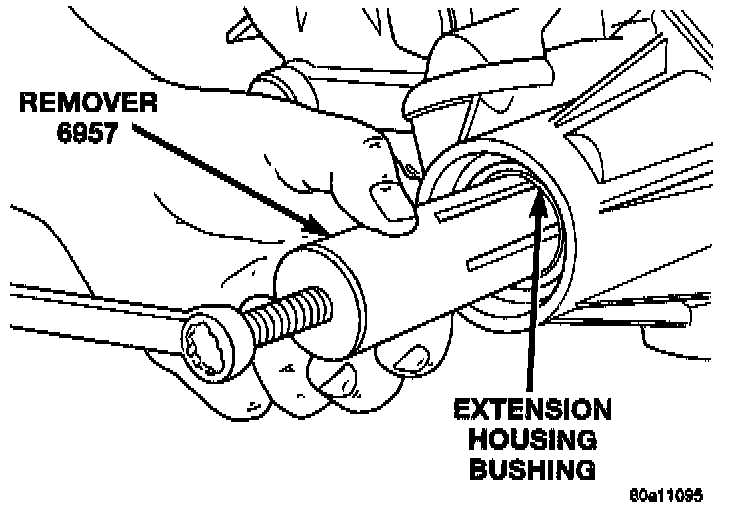

Bushing Removal-Typical:

2. Insert Remover 6957 into rear housing. Tighten tool to bushing and remove bushing.

INSTALLATION
1. Align bushing oil hole with oil slot in rear housing.
2. Tap bushing into place with Installer 6951 and Handle C-4171.

Rear Housing Seal Installation:

3. Install new oil seal in housing using Seal Installer C-3972-A.
