2ND Row Seat Back
2ND ROW SEAT BACKREMOVAL
1. Tumble seat forward.
2. Remove tumble release outboard handle.

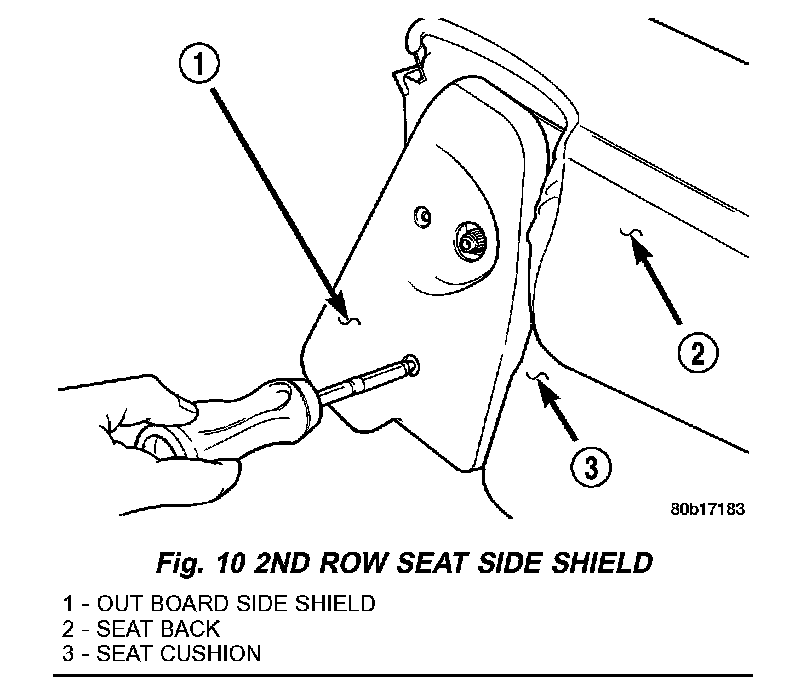

Fig. 10:
3. Remove inboard & outboard side shields (Fig.10).

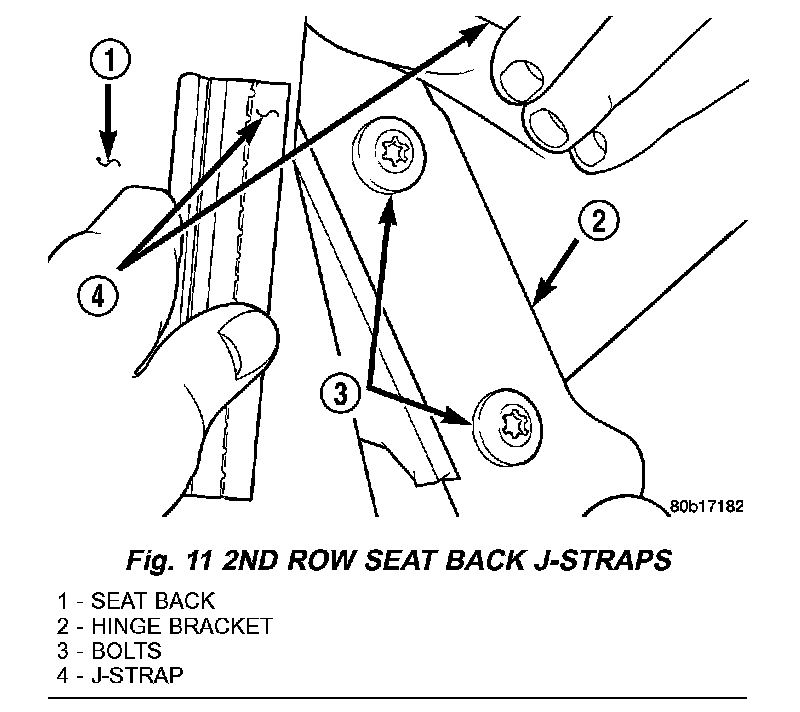

Fig. 11:
4. Disengage J-straps to access inboard and outboard bolts attaching seat back to hinge (Fig. 11).
5. Remove bolts attaching hinge to seat back.
6. Separate seat back from vehicle.
INSTALLATION
1. Position seat back in vehicle.
2. Install bolts attaching hinge to seat back and tighten to 27 N.m (19 ft. lbs.).
3. Engage inboard and outboard J-straps.
4. Install inboard & outboard side shields (Fig. 10).
5. Install tumble release outboard handle.
6. Return seat to seating position.
