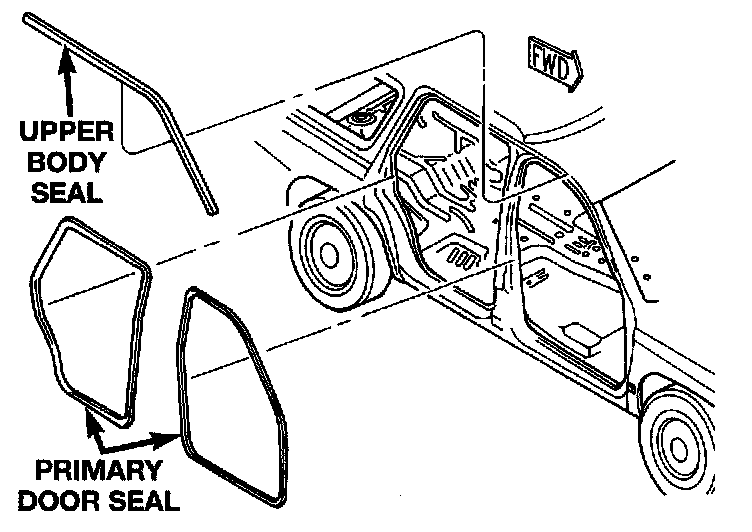

Front Door Opening

REMOVAL

1. Remove A-pillar trim.

2. Remove lower cowl trim.

3. Remove door sill trim.

4. Loosen upper and lower B-pillar trim to access weatherstrip.

5. Pull weatherstrip from pinch flange around door opening.

INSTALLATION

1. Clean pinch flange

2. Position the weatherstrip on the pinch flange around door opening and press into place.

3. Press B-pillar trim into place.

4. Install lower cowl trim.

5. Install door sill trim. Ensure the clips attaching the sill trim to the door sill are fully seated.
