Rear Door Window Regulator

The content of this article reflects changes called for in TSB 26-05-98.

REMOVAL

1. Remove door trim panel.
2. Remove upper door trim extension panel.
3. Remove inner belt weatherstrip.
4. Remove waterdam.
5. Remove speaker.
6. Remove front glass run channel.
7. Remove door glass
8. Disconnect regulator wire harness, if equipped.

Fig. 55 Rear Door Window Regulator - Manual:

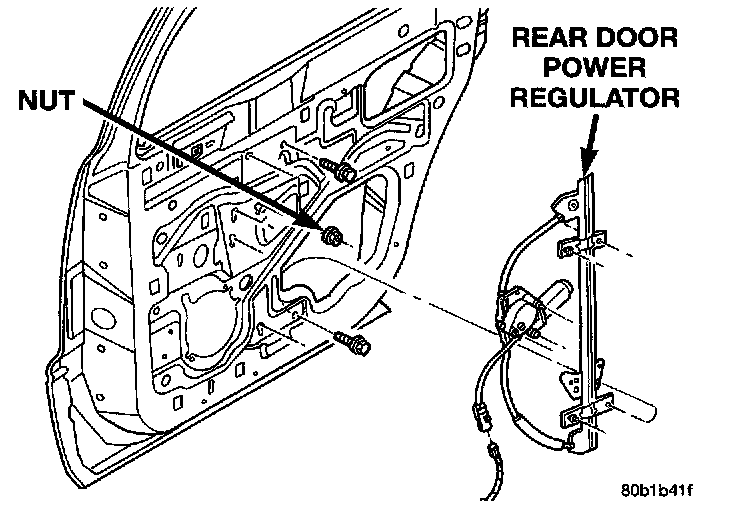

Rear Door Window Regulator - Power:

9. Remove screws attaching window regulator to door inner panel.
10. Remove window regulator from door.

INSTALLATION

1. Position window regulator in door.
2. Install screws attaching window regulator to door inner panel.
3. Install door glass
4. Install front glass run channel.
5. Connect regulator wire harness, if equipped.
6. Install waterdam.
7. Install inner belt weatherstrip.
8. Install door trim panel.
