Radio Bezel and HVAC Control

REMOVAL
1. Remove convenience bin-cup holder.
2. Insert the trim stick (special tool #C-4755) between access cover and radio bezel, above convenience bin-cup holder.

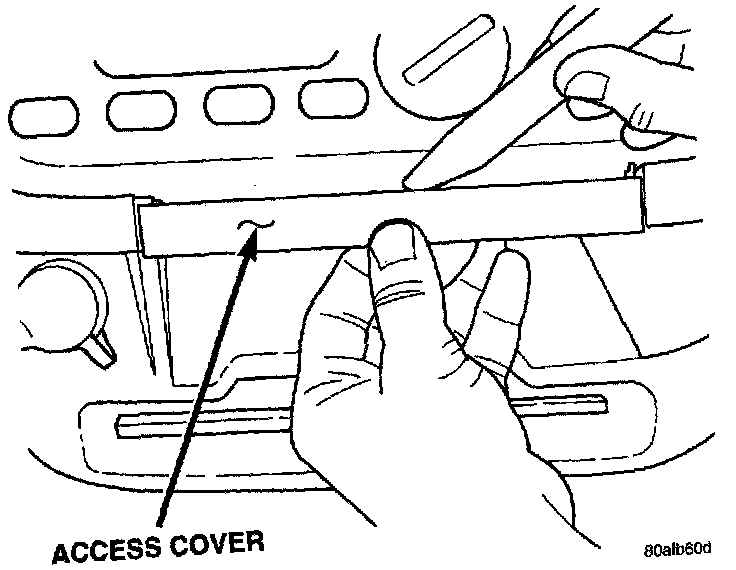

Convenience Bin Access Cover:

3. Carefully pry the access cover from the instrument panel.
4. Separate the access cover from the vehicle.
5. Remove convenience bin-cup holder track.

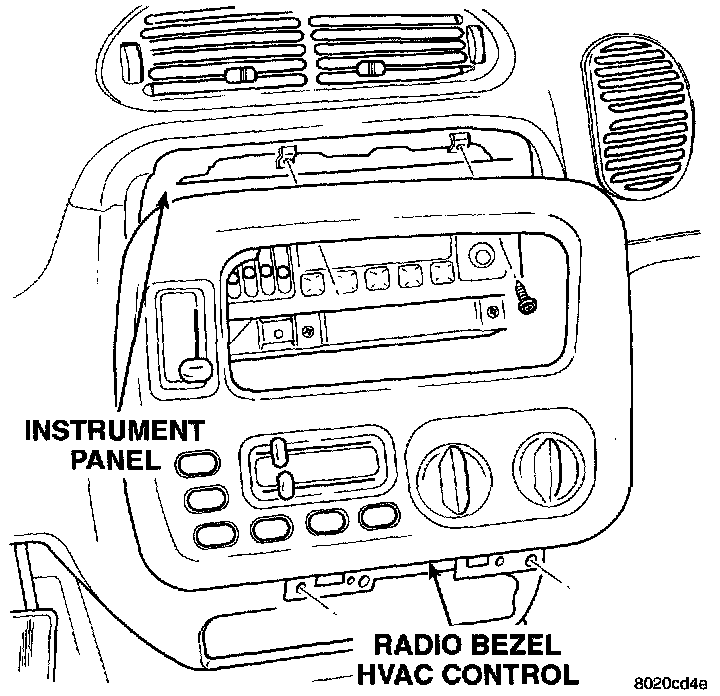

Radio Bezel And HVAC Control:

6. Remove the attaching screws holding bottom of the bezel to instrument panel.
7. Remove the attaching screws holding top of the bezel to the instrument panel.
8. Remove the bezel from the instrument panel.
9. Disconnect the wire connector from back of the rear blower switch, if equipped.
10. Disconnect the wire connector from the back of the HVAC Control.
11. Remove the bezel.

INSTALLATION
1. Hold the radio bezel up and connect the wire connector into the back of the HVAC control.
2. Connect the wire connector into back of the rear blower switch, if equipped.
3. Place the radio bezel in position on the instrument panel.
4. Install screws to hold the top of radio bezel to instrument panel.
5. Install screws to the hold bottom of the radio bezel to the instrument panel.
6. Install the access cover.
