Radiator: Description and Operation

Cooling Module:

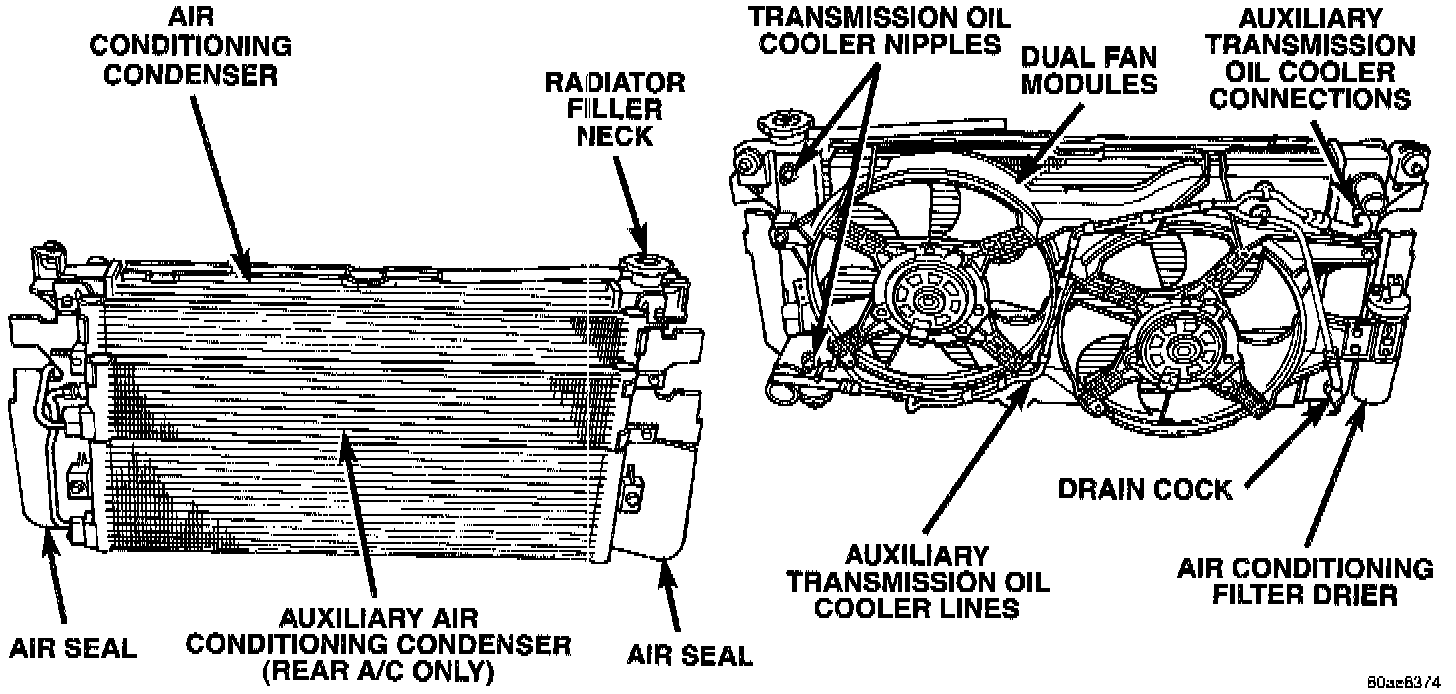

Cooling Module - Trailer Tow (With Rear A/C):

The radiators are cross-flow types (horizontal tubes) with design features that provide greater strength along with sufficient heat transfer capabilities to keep the engine satisfactorily cooled.

CAUTION: Plastic tanks, while stronger then brass are subject to damage by impact, such as Wrenches etc., or by excessive torque on hose clamps.

If the plastic tank is damaged, replace the radiator.
