Instrument Panel Center Louver Housing

REMOVAL
1. Remove the instrument cluster bezel. Refer to Instrument Cluster Bezel removal and installation procedures.

Instrument Cluster Bezel:

2. Place cluster bezel on a clean surface face down with the head lamp switch to the right side.

Center Louver:

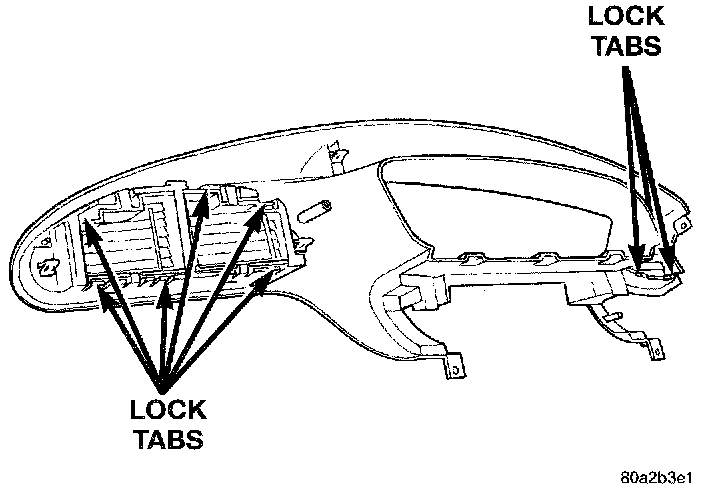

3. Using a flat bladed tool, release the louver housing locks tabs.

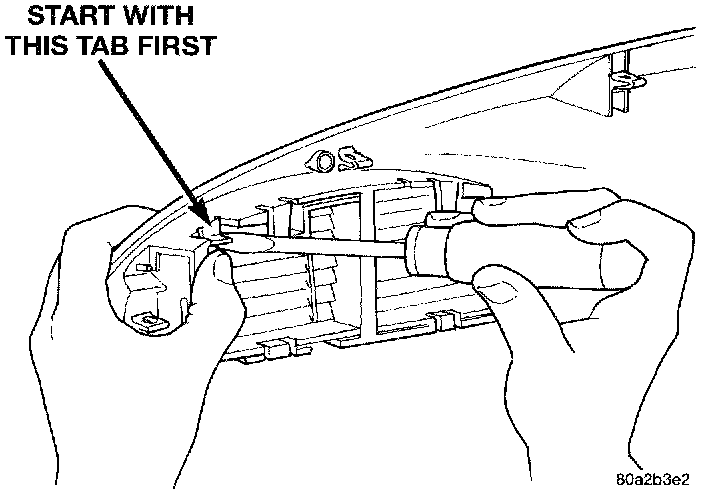

4. Release the upper left lock tab first, then the two lower louver tabs.
5. Applying pressure on the housing, release the upper right lock tab and the lower right.
6. Push out the louver housing from the cluster bezel.

INSTALLATION
1. Verify the function of the vanes.
2. Set louver housing into the cluster bezel.
3. Using care do not push on the vanes, apply pressure on outer edge of the housing and push louver housing into place.
4. After in place check function of the vanes.
