Sliding Door Lock Contacts

REMOVAL
1. Open the sliding door.

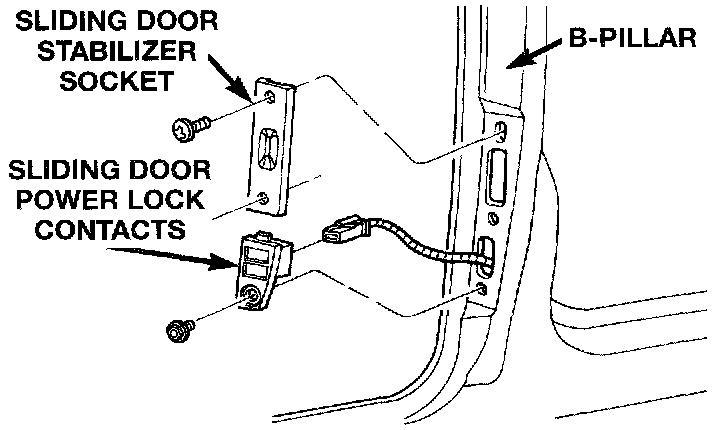

Sliding Door Lock Contacts:

2. Remove screw holding the lock contacts to B-pillar.
3. Disconnect the wire connector from the lock contacts.
4. Remove the lock contacts from B-pillar.

INSTALLATION
- For Installation, reverse the above procedures.
