Overhead Console Reading/Courtesy Lamp Bulb

REMOVAL

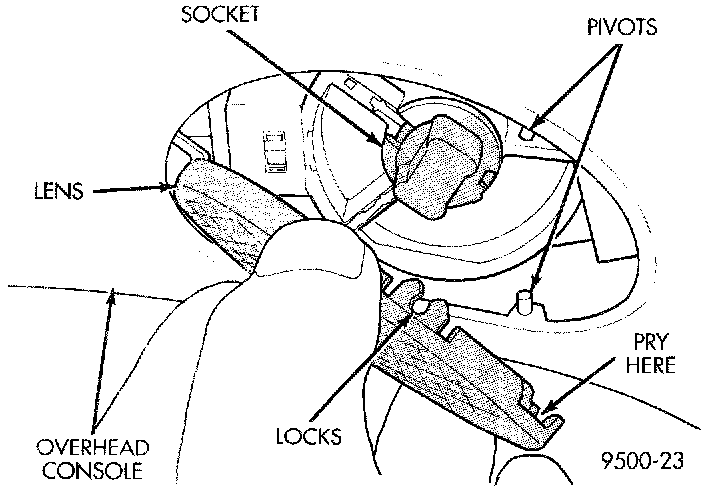

1. Using a trim stick, lightly pry outward the forward end of reading lamp lens.
2. Rotate reading lamp bulb socket one quarter turn counter clockwise.

Reading/Courtesy Lamp:

3. Pull socket out of lamp.
4. Pull bulb from socket.

INSTALLATION
1. Push bulb into socket.
2. Push socket into lamp.
3. Rotate reading lamp bulb socket one quarter turn clockwise.
4. Insert tab on lamp lens between lamp switch and overhead console.
5. Snap lens onto lamp lens pivots.
