Radio, Stereo, and Compact Disc: Service and Repair

REMOVAL

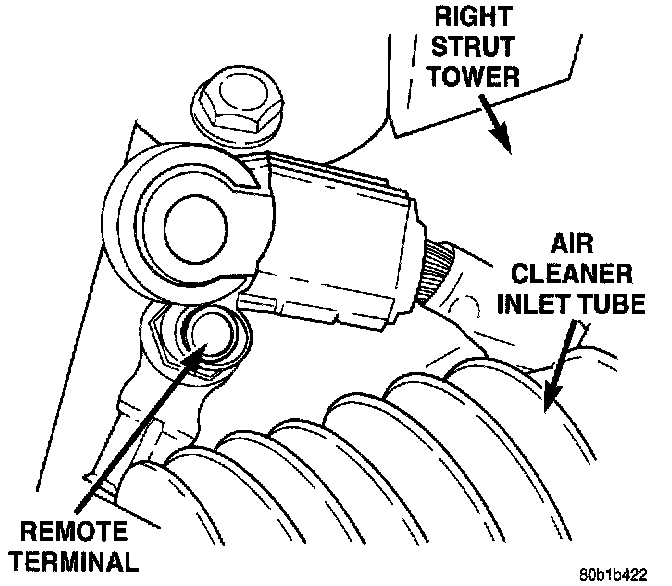

Negative Battery Cable Remote Terminal:

1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove instrument panel center trim bezel. Refer to Instrument Panel, Gauges and Warning Indicators/Instrument Panel/Replacement screws.
4. Pull radio from panel and disconnect wiring, ground strap, wires and antenna lead from radio.
5. Remove radio from vehicle.

INSTALLATION
- For installation, reverse the above procedures.
