Seats: Service and Repair

REMOVAL
1. Remove adjuster attaching bolts from floor pan. Move seat as necessary for access.

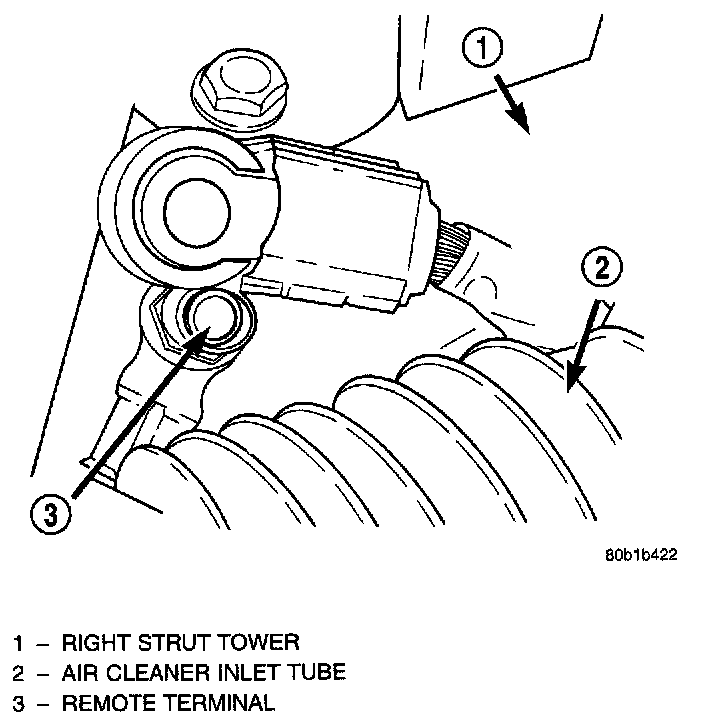

Negative Battery Cable Remote Terminal:

2. Open hood, disconnect and isolate the negative battery cable remote terminal from the remote battery post.
3. Disconnect wiring harness power lead at carpet.
4. Remove assembly from vehicle.

INSTALLATION
- For installation, reverse the above procedure. Install and torque mounting bolts and nuts to 60 to 80 N.m (44 to 59 ft. lbs.) Connect the battery negative remote cable and check seat operation.
