Exhaust System: Description and Operation

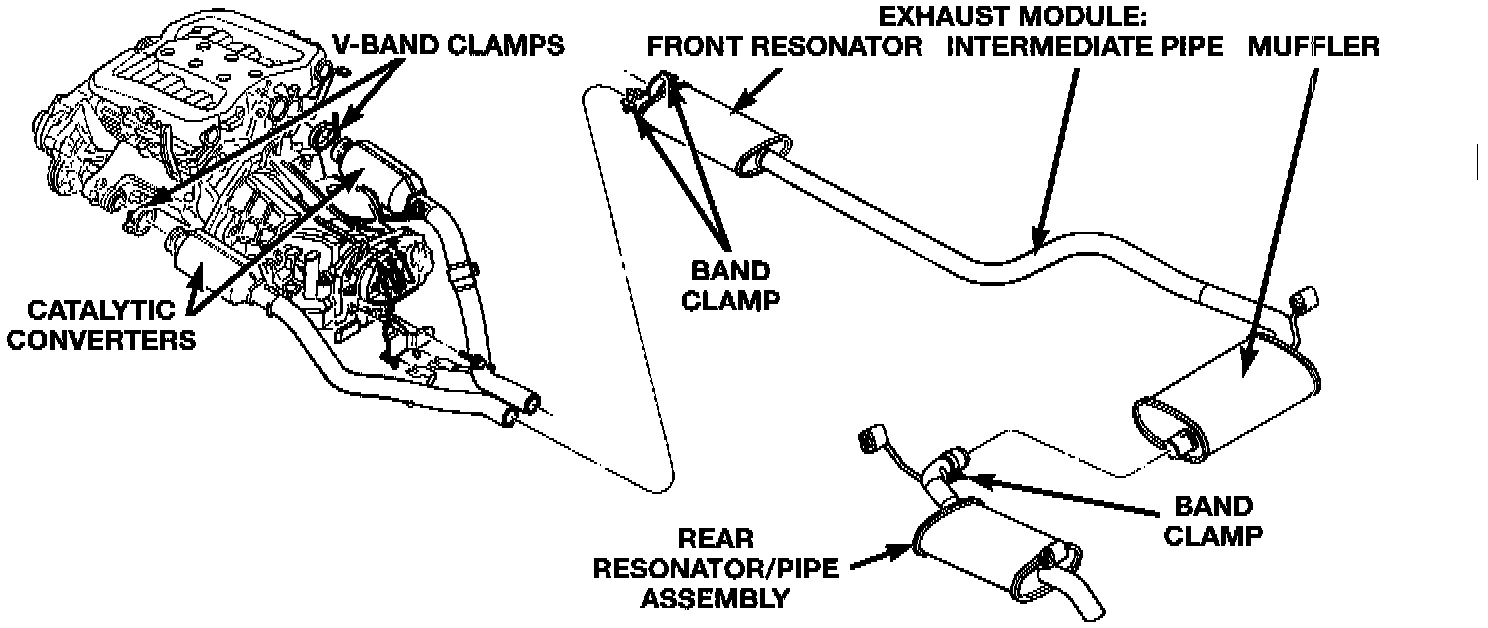

Figure 1-Exhaust System:

The exhaust system consist of two front close coupled catalytic converters. Both converters attach directly to the exhaust manifold using a V-Band clamp. The exhaust down pipes exit the converters and connect into the front resonator. The front resonator, intermediate pipe, and muffler are one single module. The rear resonator and tailpipe connect to the muffler outlet. The upstream oxygen sensors are located in each exhaust manifold. The downstream oxygen sensors are located at the rear of each catalytic converter.
