Cluster Mask/Lens

The instrument cluster must be removed for mask/lens service. Refer to Instrument Cluster Removal and Installation procedures.

REMOVAL
1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove instrument cluster from vehicle

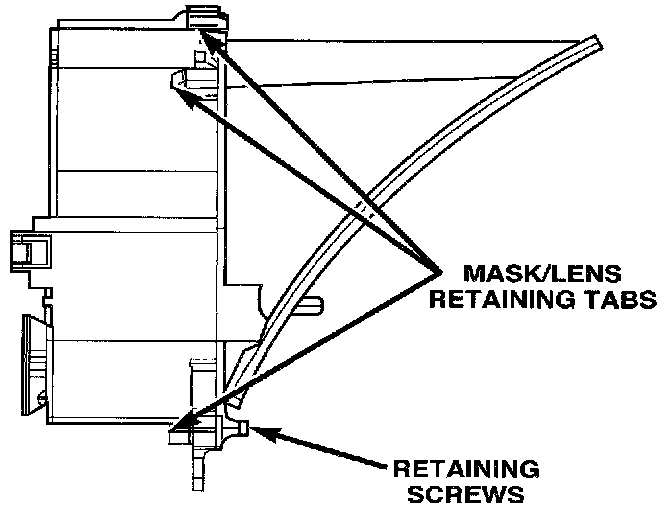

Instrument Cluster Mask/Lens Retaining Screws:

3. Remove two screws to mask/lens.

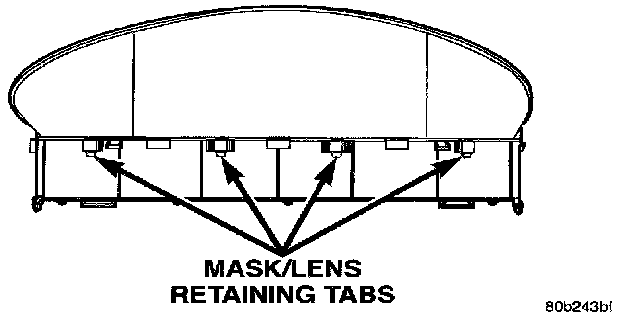

Instrument Cluster Mask/Lens Retaining Tabs - Top:

4. Unsnap seven retaining tabs holding mask/lens to cluster housing.
5. Separate mask/lens from instrument cluster and remove.

INSTALLATION
- For installation reverse the above procedures.
