Spark Plug: Adjustments

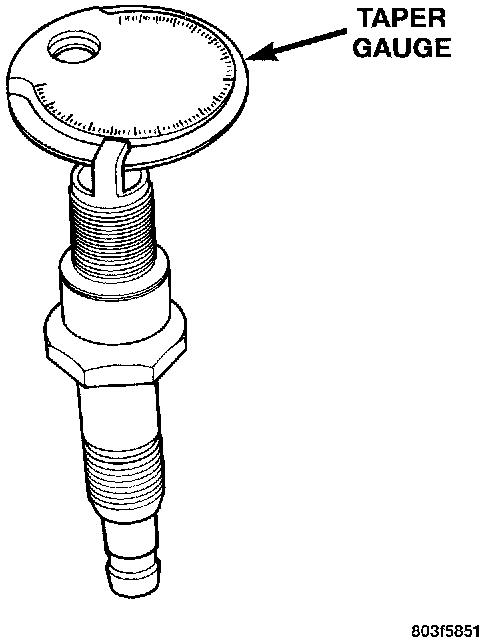

Fig 2 Setting Spark Plug Electrode Gap:

SPARK PLUG GAP MEASUREMENT
Adjust the gap between the electrodes (Fig. 2) to the dimensions specified in the chart at the end of this section.

Apply a very small amount of anti-seize compound to the threads when reinstalling the vehicle's original spark plugs that have been determined good. Do not apply anti-seize compound to new spark plugs.

NOTE: Anti-seize compound is electrically conductive and can cause engine misfires if not applied correctly. It is extremely important that the anti-seize compound does not make contact with the spark plug electrodes or ceramic insulator.

Never force a gap gauge between the platinum electrodes or adjust the gap on platinum spark plugs without reading the Spark Plug Gap Measurement procedures.

Always tighten spark plugs to the specified torque. Over tightening can cause distortion resulting in a change in the spark plug gap. Overtightening can also damage the cylinder head.

CAUTION: The Platinum pads can be damaged during the measurement of checking the gap if extreme care is not used.

- USE ONLY A TAPER GAP GAUGE (Fig. 2)
- Never force the gap gauge through the platinum pads. Only apply enough force until resistance is felt.
- Never use a wire brush or spark plug cleaner machine to clean platinum spark plugs
- Use an OSHA approved air nozzle when drying gas fouled spark plugs.

If gap adjustment is required of platinum plug, bend only the ground electrode. DO NOT TOUCH the platinum pads. Use only a proper gapping tool and check with a taper gap gauge.

CAUTION: Cleaning of the platinum plug may damage the platinum tip.
