NTC-11A Checking The Oxygen Sensor Heater
NTC-11A Checking The Oxygen Sensor Heater
Related Image:

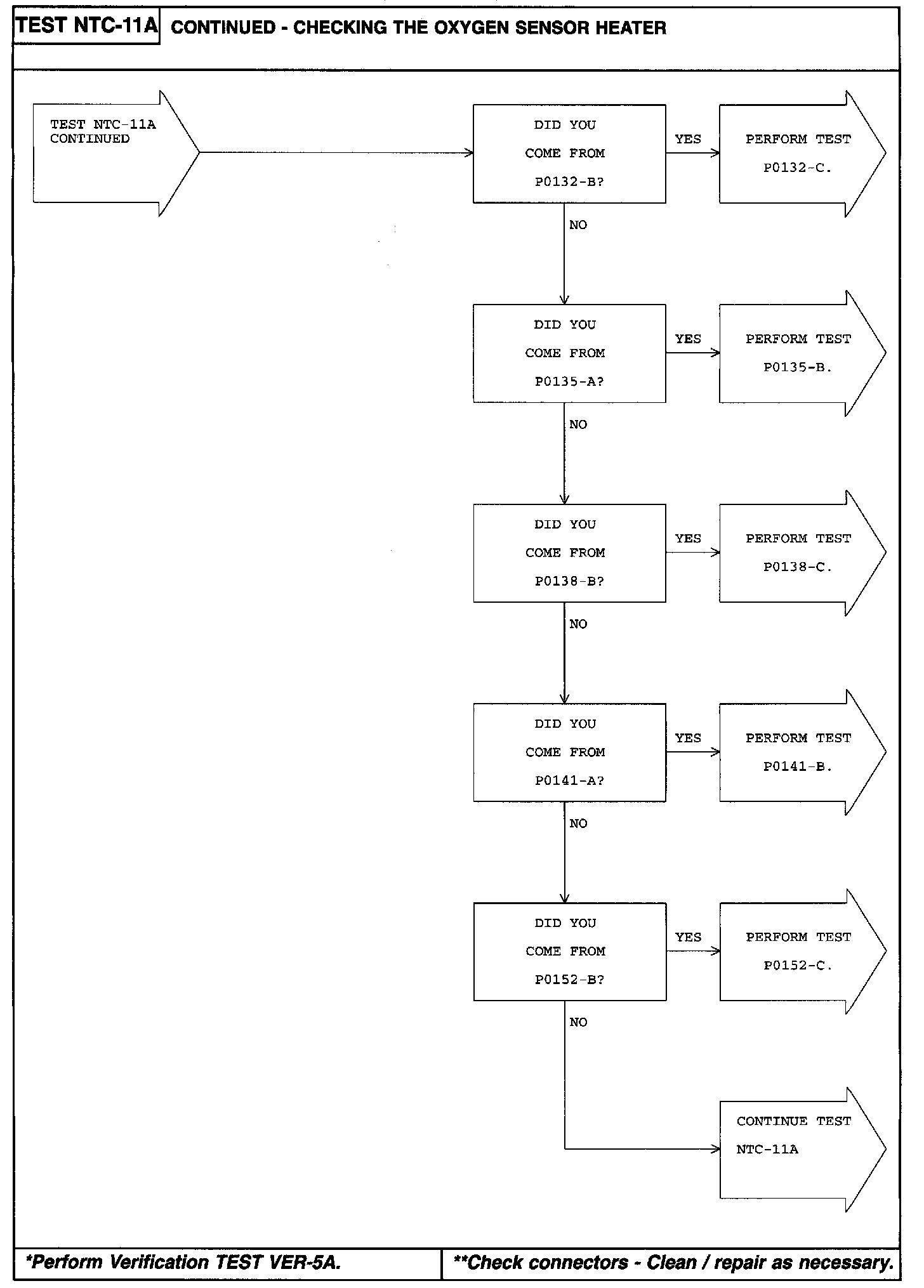

Diagnostic Chart:
Diagnostic Chart:
Diagnostic Chart:
