Air Conditioning (A/C) Clutch Relay

DESCRIPTION
This circuit controls a ground signal for operation of the A/C clutch relay. Also refer to Air Conditioning (A/C) Controls-PCM Pin #27-PCM Input for additional information.

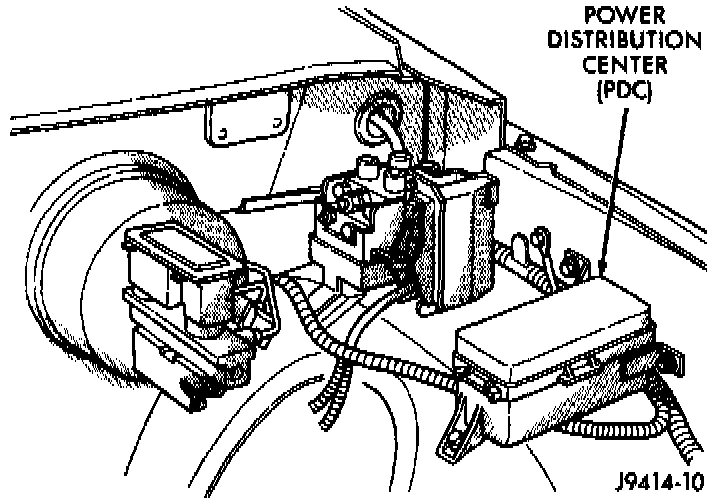

Fig. 13 Power Distribution Center (PDC) Location:

LOCATION
The A/C relay is located in the Power Distribution Center (PDC). Refer to the (PDC) lid for relay location.
