Clearance Lamp: Service and Repair

REMOVAL

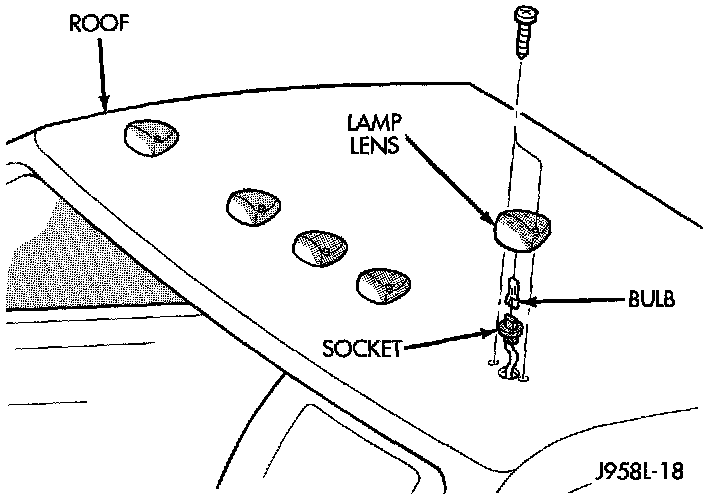

Roof Clearance Lamps:

1. Remove screws holding clearance lamp lens to roof panel.
2. Rotate socket 1/4 turn counterclockwise and separate socket from lamp.

INSTALLATION
1. Install socket in lamp and rotate socket 1/4 turn clockwise.
2. Position clearance lamp on roof.
3. Install screws holding clearance lamp lens to roof panel. Tighten to 1 N.m (13 in. lbs.).
