Door Switch: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Grasp the body of the door jamb switch with a pair of pliers and move the switch gently back-and- forth while pulling it out of the door hinge pillar mounting hole.

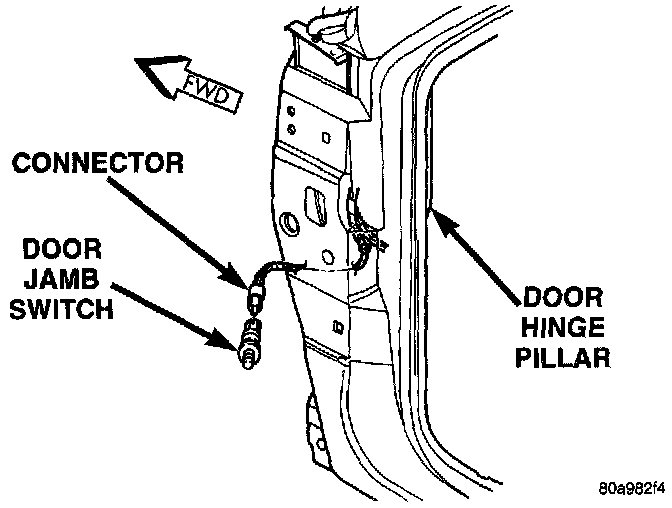

Door Jamb Switch Remove/Install:

3. Pull the door jamb switch out from the pillar far enough to access the wire harness connector.
4. Unplug the door jamb switch from the wire harness connector.
5. Reverse the removal procedures to install.
