Shift Cover Vent

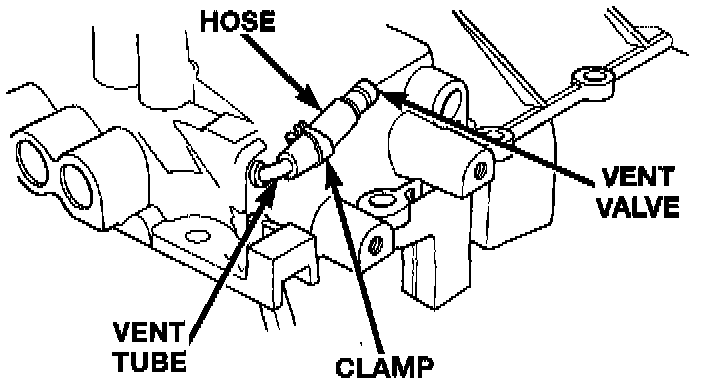

Shift Cover Vent Components:

The shift cover vent assembly consists of the vent tube, connecting hose, hose clamps, and vent valve.

If the vent tube is removed for replacement or service access, apply MOPAR silicone adhesive/sealer, or equivalent, to the tube to help secure it in the cover. Ensure that the vent is positioned 15-35° from horizontal in order to prevent leaks.
