Transmission Relay

DESCRIPTION
The output to this relay provides battery voltage to the overdrive (OD), torque converter clutch (TCC) and variable force solenoids.

OPERATION
Once battery voltage is applied to the solenoids, they are individually activated by the PCM through OD, TCC and outputs.

LOCATION

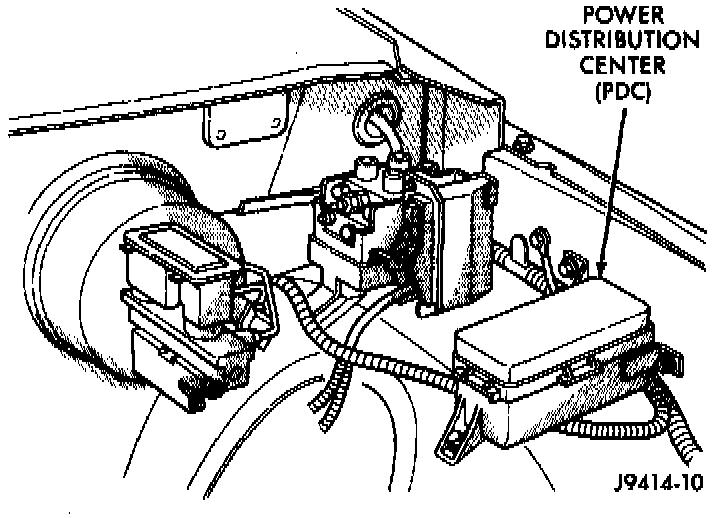

Power Distribution Center (PDC):

The relay is located in the Power Distribution Center (PDC). Refer to label on PDC cover for relay location.
