Yoke Seal

REMOVAL
1. Raise vehicle.
2. Mark propeller shaft and axle yoke for alignment reference.
3. Disconnect and remove propeller shaft.

Removing Extension Housing Yoke Seal:

4. Remove old seal with Seal Remover C-3985-B from extension housing.

INSTALLATION
1. Place seal in position on extension housing.

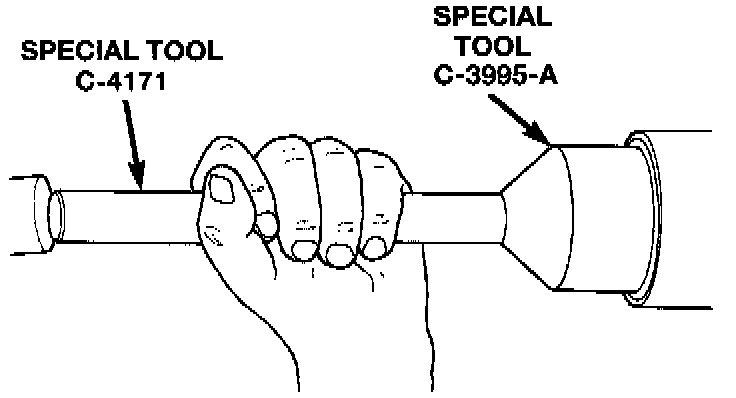

Installing Extension Housing Yoke Seal:

2. Drive seal into extension housing with Seal Installer C-3995-A or C-3972.
3. Carefully guide propeller shaft slip yoke into housing and onto output shaft splines. Align marks made at removal and connect propeller shaft to rear axle pinion yoke.
