Home >> Dodge and Ram >> 1998 >> Stratus L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-45 Body Control Module >> Sheet 8W-45-10

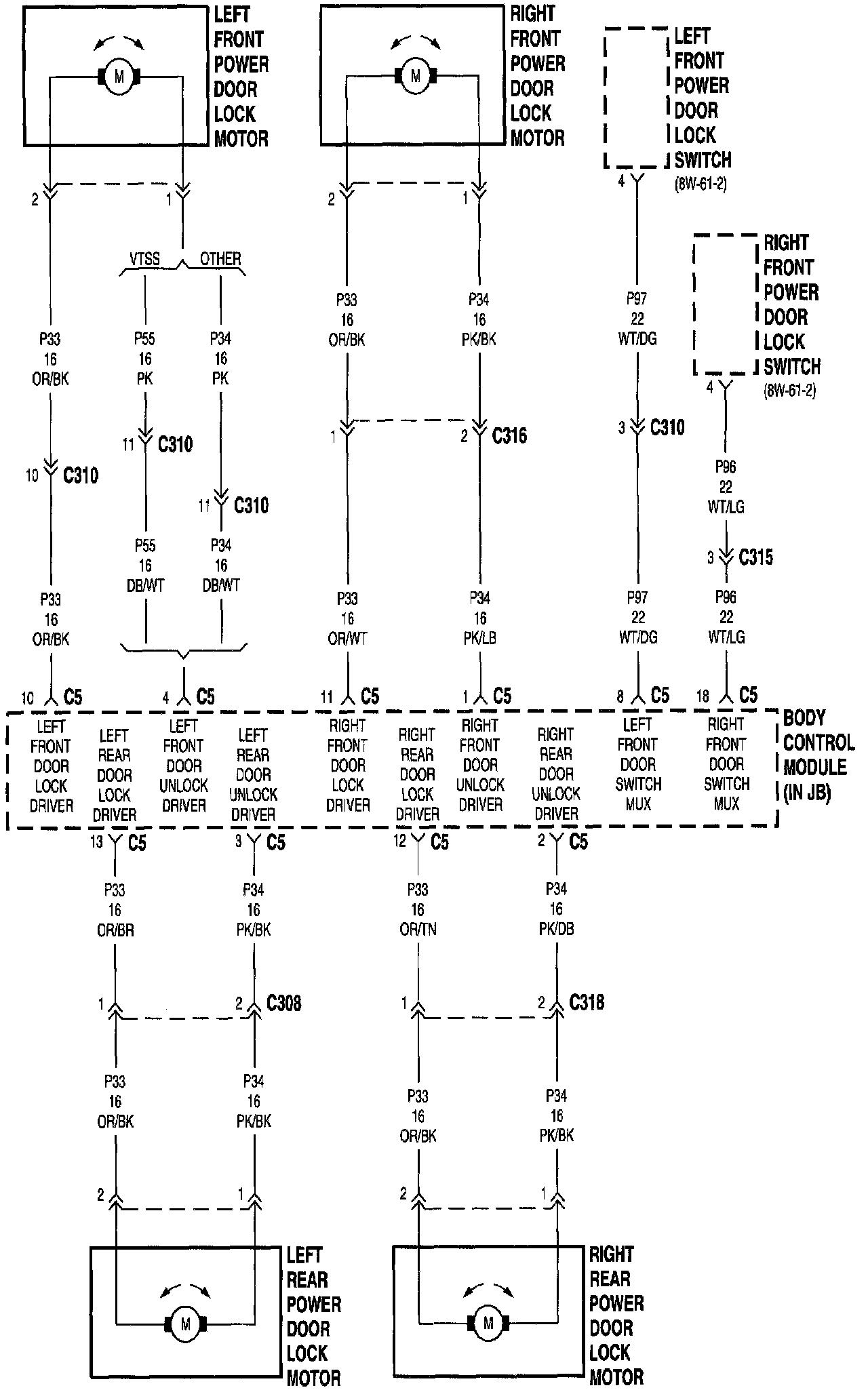

Sheet 8W-45-10

Body Control Module (Part 9 Of 10):
