Home >> Dodge and Ram >> 1998 >> Stratus L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Grounds >> Connector and Ground Index >> Part 4 of 4

Part 4 of 4

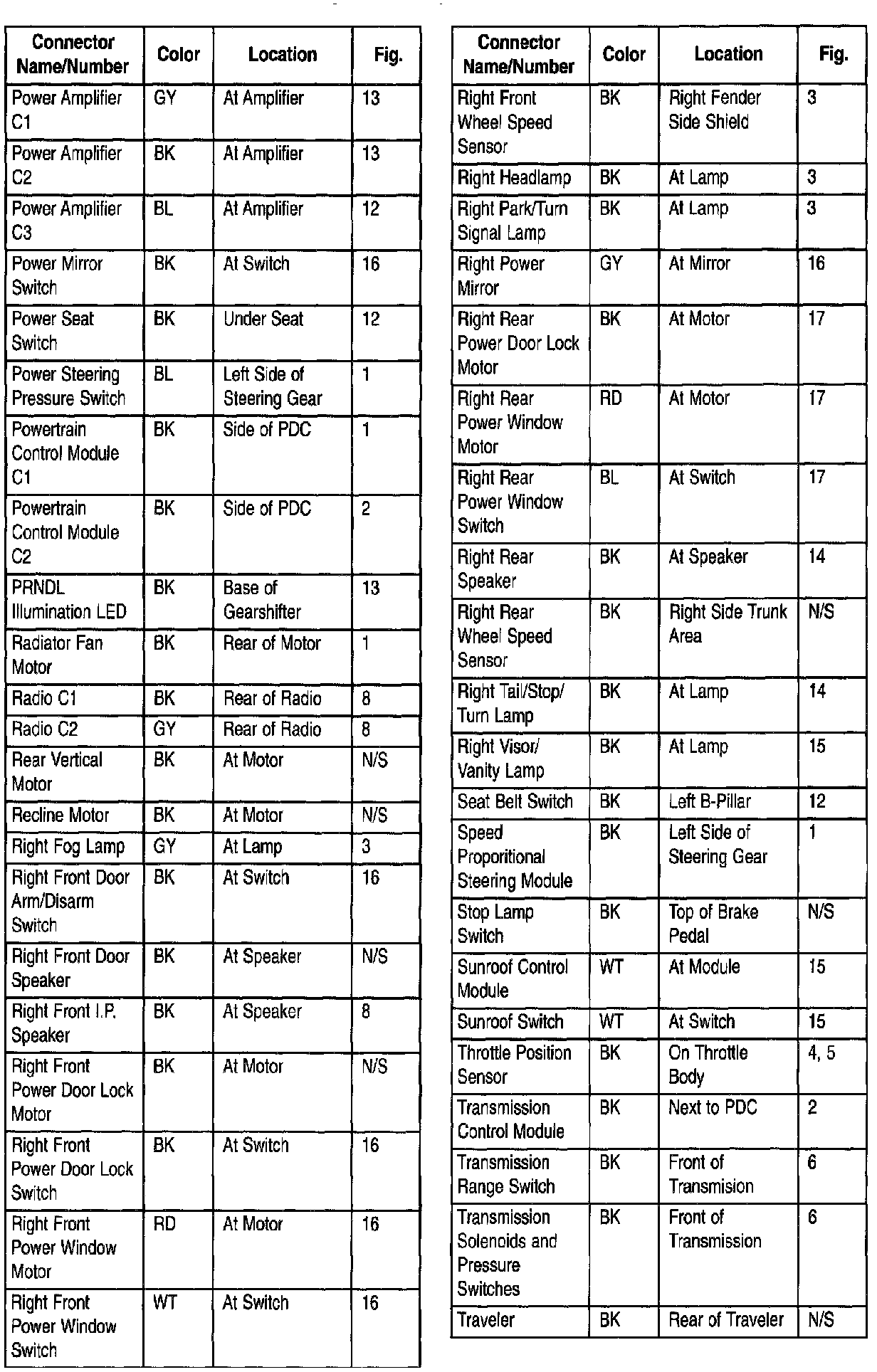

Connector/Ground Locations Diagram Index (Part 4 Of 5):
