Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge and Ram
>>
1998
>>
Stratus L4-2.4L VIN X
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
Connector Views

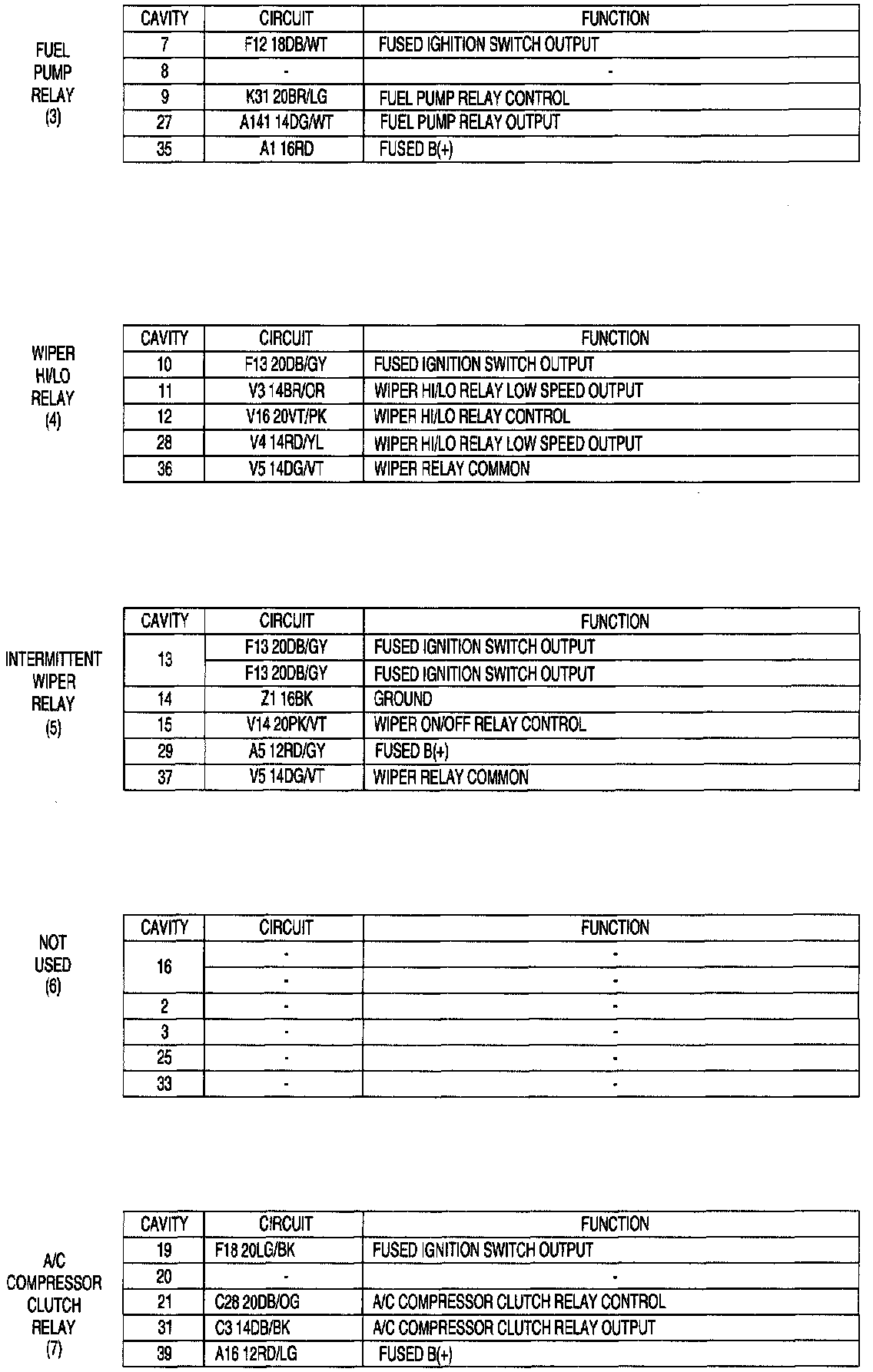

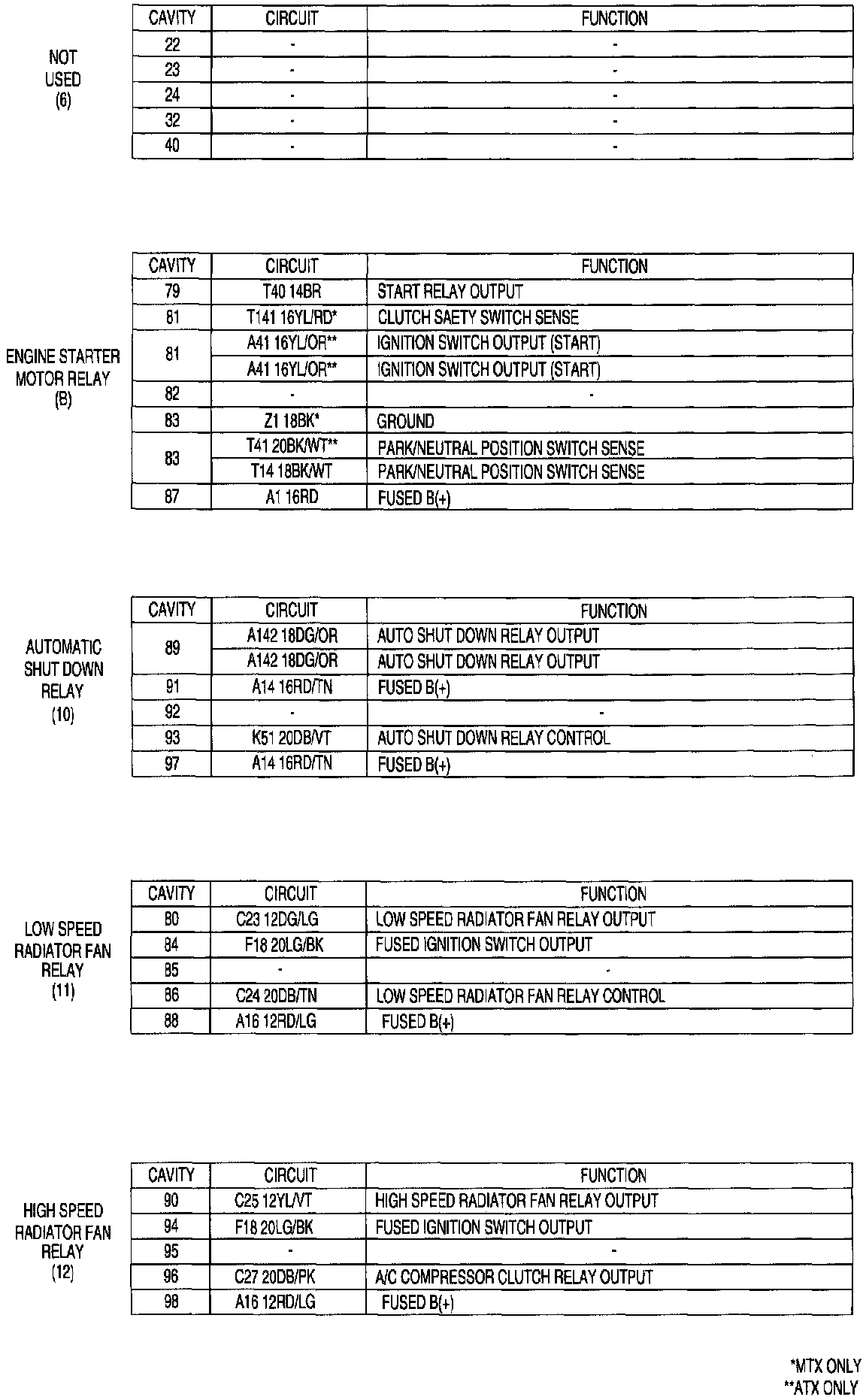

Power Distribution:
Power Distribution:
Power Distribution:
Power Distribution:
