Traction Control Switch

Tests 149 Through 153:

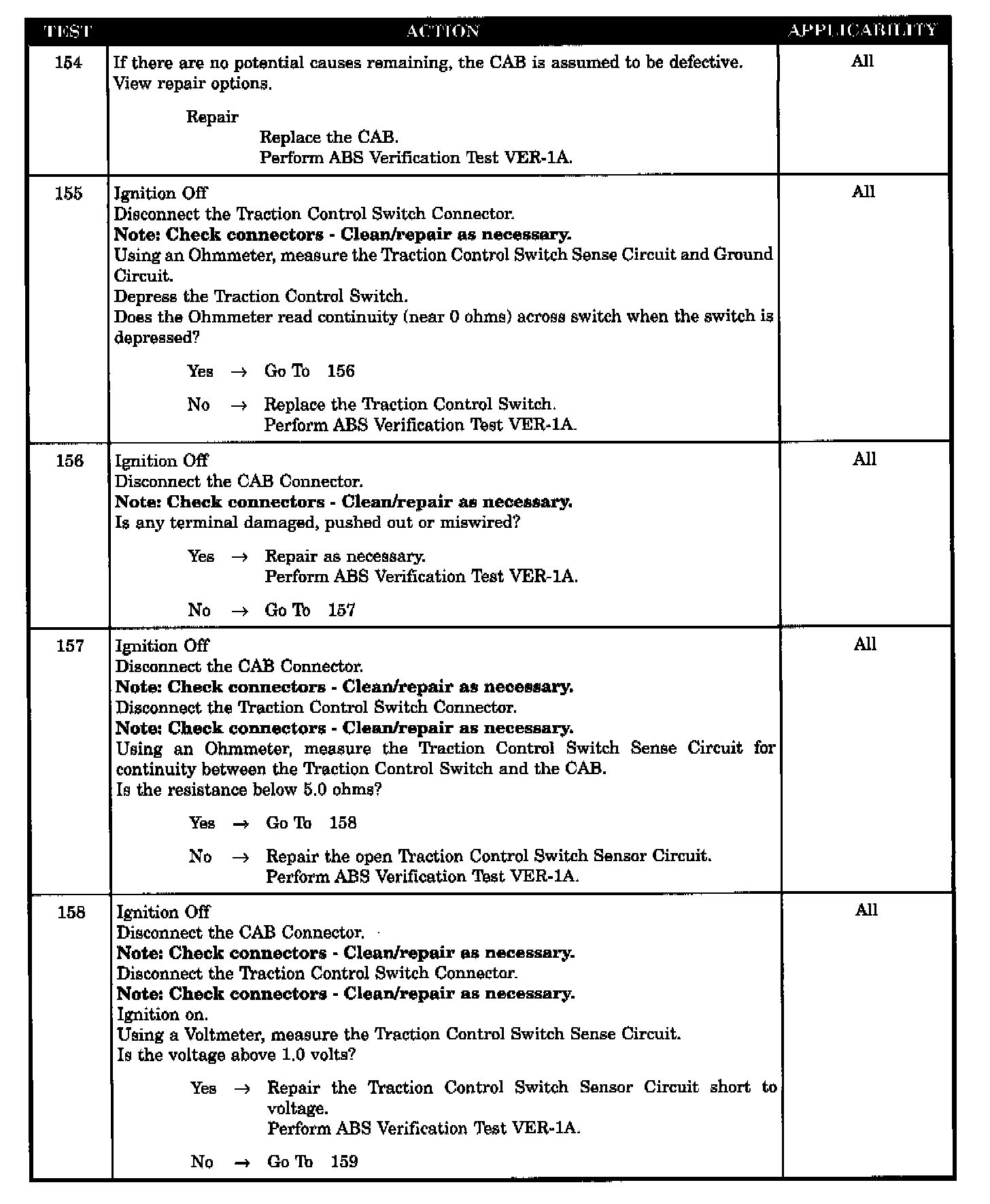

Tests 154 Through 158:

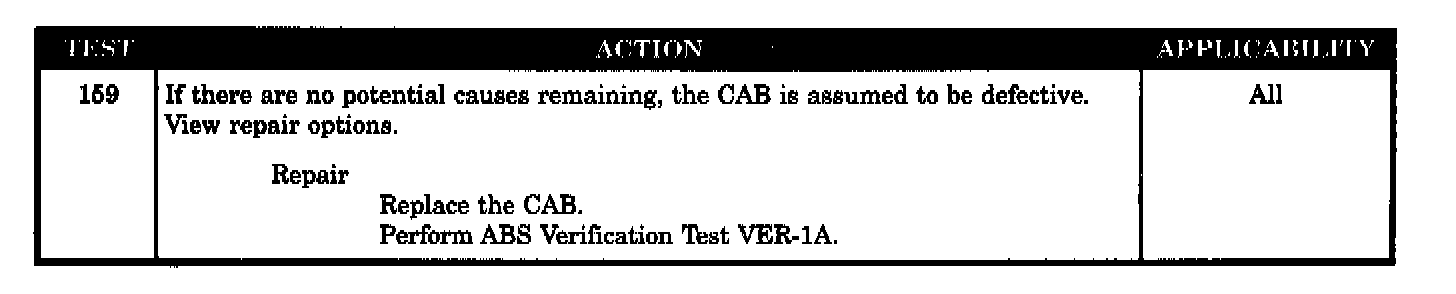

Test 159:

Symptom:
* TRACTION CONTROL SWITCH

Possible Causes
TRACTION CONTROL SWITCH OPERATING PROPERLY
CAB CONNECTOR OBSERVABLE DEFECT
TRACTION CONTROL SWITCH GROUND CIRCUIT OPEN
TRACTION CONTROL SWITCH DEFECTIVE
TRACTION CONTROL SWITCH SENSOR CIRCUIT OPEN
TRACTION CONTROL SWITCH SENSOR CIRCUIT SHORT TO B+
TRACTION CONTROL SWITCH SENSOR CIRCUIT SHORT TO GND
CAB DEFECTIVE (1)
CAB DEFECTIVE (2)
