Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
>>

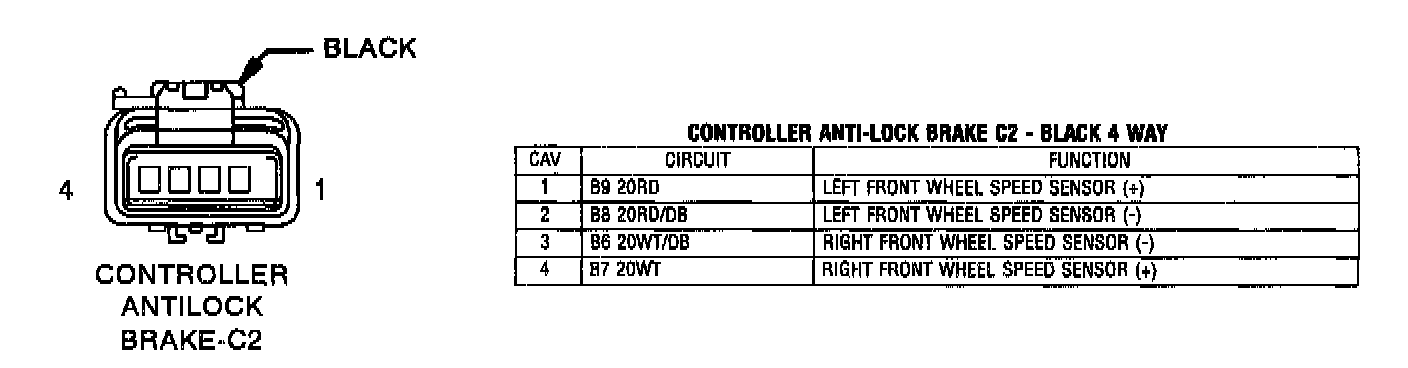

Connector Plug C2
Connector Plug C2
Connector Pin Identification:
