Fuel Filter: Locations

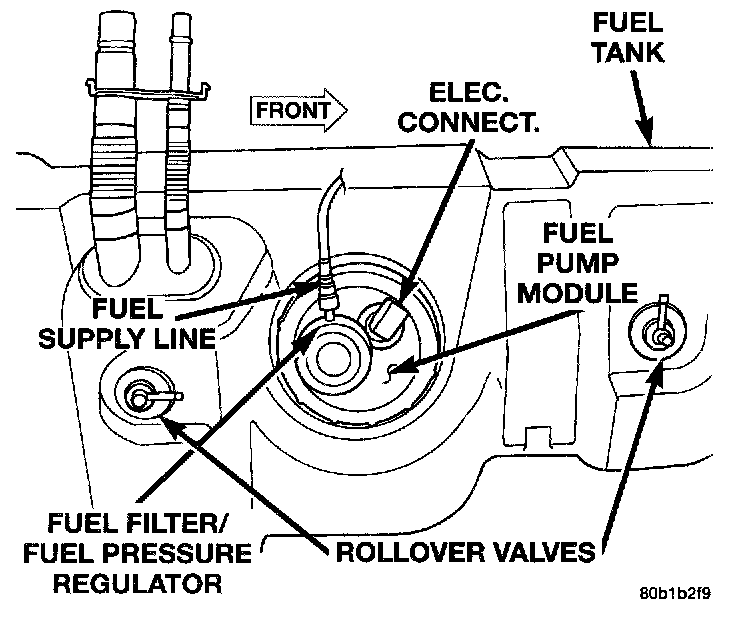

Filter/Regulator Location:




The fuel filter/fuel pressure regulator is located at top of fuel pump module on top of fuel tank.
