Circuit Breaker: Service and Repair

CIRCUIT BREAKER

REMOVAL

1. Disconnect and isolate the battery negative cable.

2. Remove the end cap from the driver side end of the instrument panel. Refer to Instrument Panel End Cap Removal and Installation.
Instrument Panel End Cap Replacement

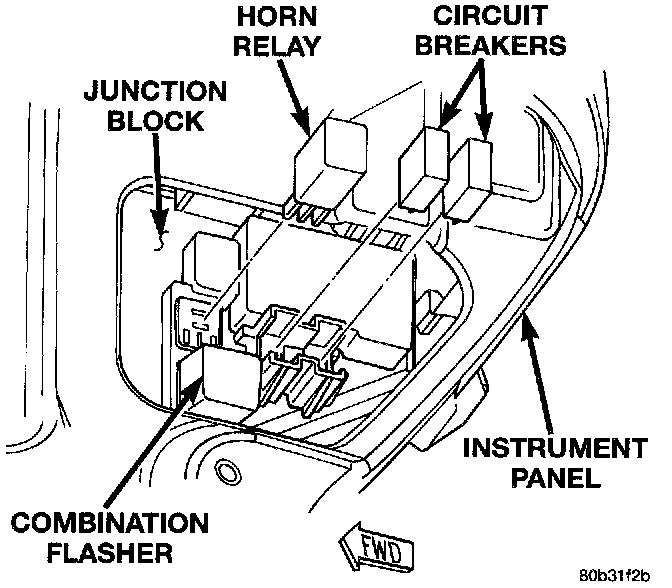

Junction Block:

3. Unplug the circuit breaker from the junction block.

INSTALLATION

1. Install the circuit breaker by aligning its terminals with the cavities in the junction block and pushing the circuit breaker firmly into place.

2. Connect the battery negative cable.

3. Test the circuit breaker operation.

4. Reinstall the end cap on the instrument panel. Refer to Instrument Panel End Cap Removal and Installation.
Instrument Panel End Cap Replacement
